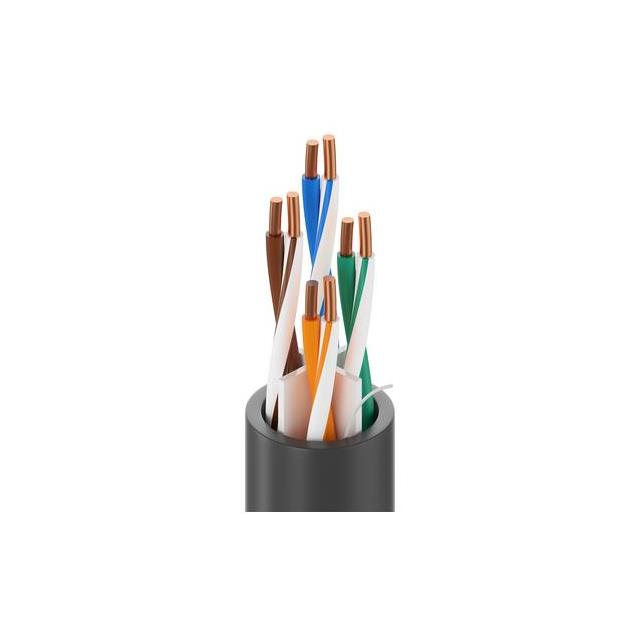

7927A 0105000

Active

Belden Inc.

CABLE CAT6 8COND 23AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE CAT6 8COND 23AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	7927A 0105000

Cable Type	Multi-Pair, Cat6
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Oil Resistant, UV Resistant, Rip Cord
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style CMR
Usage	Industrial, Network
Voltage	300 V
Wire Gauge	23 AWG

Part	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Features	Cable Type	Jacket (Insulation) Material	Length	Length	Voltage	Ratings	Conductor Strand	Wire Gauge	Conductor Insulation	Conductor Material	Number of Conductors
Belden Inc. 7927A 0101000	Black	-40 °C	75 ░C	Industrial Network	Oil Resistant Rip Cord UV Resistant	Multi-Pair Cat6	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	300 V	UL Style CMR	Solid	23 AWG	Polyolefin (PO)	Copper Bare	8
Belden Inc. 7927A 0105000	Black	-40 °C	75 ░C	Industrial Network	Oil Resistant Rip Cord UV Resistant	Multi-Pair Cat6	Poly-Vinyl Chloride (PVC)			300 V	UL Style CMR	Solid	23 AWG	Polyolefin (PO)	Copper Bare	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 2.40

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat6 Cable Black 23 AWG 5000' (1524.0m)
