Specification	C2225C105Z5UAC7800

Applications	General Purpose
Capacitance	1 µF
Mounting Type	Surface Mount, MLCC
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	10 °C

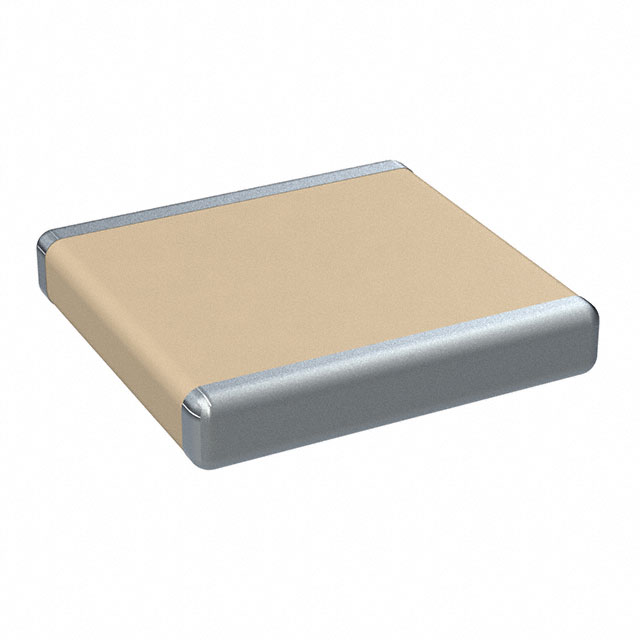

Package / Case	2225 (5763 Metric)
Size / Dimension Length	0.22 in
Size / Dimension Width	0.252 in
Temperature Coefficient	Z5U
Thickness (Max)	0.045 in
Tolerance (Negative)	20 %
Tolerance (Positive)	80 %
Voltage - Rated	50 V

C2225C Series

...

Part	Applications	Features	Capacitance	Tolerance	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Size / Dimension Length	Size / Dimension Width	Voltage - Rated	Thickness (Max)	Temperature Coefficient
KEMET C2225C153J2GAC7800	General Purpose	Low ESL	0.015 µF	5 %	MLCC Surface Mount	125 °C	-55 °C	2225 (5763 Metric)	0.22 in	0.252 in	200 VDC	0.061 in	C0G NP0
KEMET C2225C911GZGAC7800	General Purpose	High Voltage Low ESL	910 pF	2 %	MLCC Surface Mount	125 °C	-55 °C	2225 (5763 Metric)	0.22 in	0.252 in	2.5 kV	0.071 in	C0G NP0
KEMET C2225C392JGGAC7800	General Purpose	High Voltage Low ESL	3900 pF	5 %	MLCC Surface Mount	125 °C	-55 °C	2225 (5763 Metric)	0.22 in	0.252 in	2000 VAC	0.106 in	C0G NP0
KEMET C2225C104KCRAC7800	General Purpose	High Voltage Low ESL	0.1 µF	10 %	MLCC Surface Mount	125 °C	-55 °C	2225 (5763 Metric)	0.22 in	0.252 in	500 V	0.061 in	X7R
KEMET C2225C273J1GAC7800	General Purpose	Low ESL	0.027 µF	5 %	MLCC Surface Mount	125 °C	-55 °C	2225 (5763 Metric)	0.22 in	0.252 in	100 VAC/DC	0.061 in	C0G NP0
KEMET C2225C393JCGAC7800	General Purpose	High Voltage Low ESL	0.039 µF	5 %	MLCC Surface Mount	125 °C	-55 °C	2225 (5763 Metric)	0.22 in	0.252 in	500 V	0.106 in	C0G NP0
KEMET C2225C103J5GAL7800	General Purpose	Low ESL	10000 pF	5 %	MLCC Surface Mount	125 °C	-55 °C	2225 (5763 Metric)	0.22 in	0.252 in	50 V	0.061 in	C0G NP0
KEMET C2225C471JHGAC7800	General Purpose	High Voltage Low ESL	470 pF	5 %	MLCC Surface Mount	125 °C	-55 °C	2225 (5763 Metric)	0.22 in	0.252 in	3000 V	0.071 in	C0G NP0
KEMET C2225C333F5GAL7800	General Purpose	Low ESL	0.033 µF	1 %	MLCC Surface Mount	125 °C	-55 °C	2225 (5763 Metric)	0.22 in	0.252 in	50 V	0.061 in	C0G NP0
KEMET C2225C821JZGAC7800	General Purpose	High Voltage Low ESL	820 pF	5 %	MLCC Surface Mount	125 °C	-55 °C	2225 (5763 Metric)	0.22 in	0.252 in	2.5 kV	0.071 in	C0G NP0
