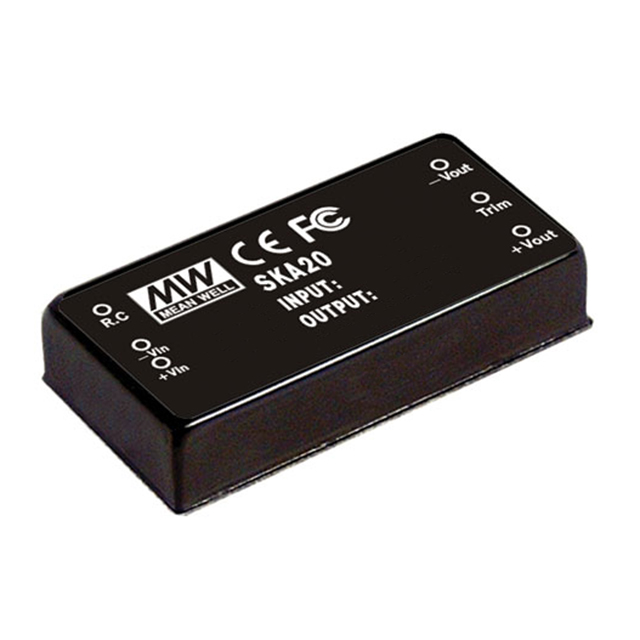

SKA20C-05
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 5V 20W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKA20C-05
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 5V 20W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKA20C-05 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | 88.5 % |
| Features | OVP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.44 " |
| Size / Dimension [z] | 11.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 30.24 | |
| 5 | $ 28.51 | |||
| 10 | $ 27.79 | |||
Description
General part information
SKA20 Series
Isolated Module DC DC Converter 1 Output 5V 4A 36V - 72V Input
