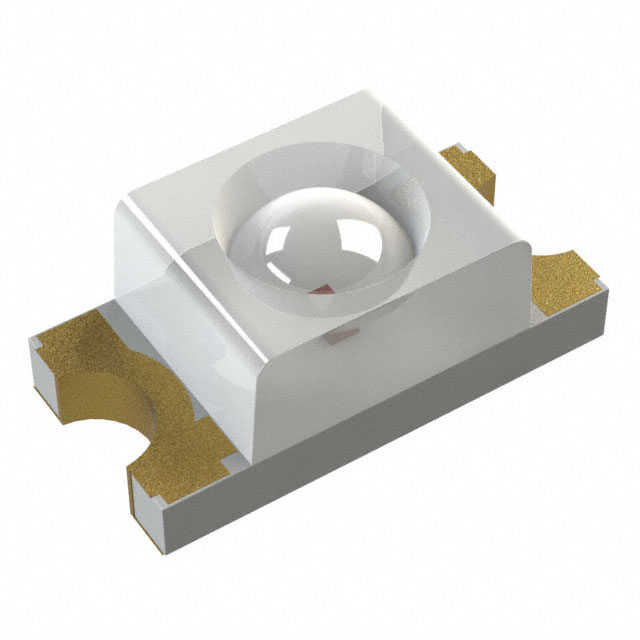

BIR-HM133A-TRB

Active

American Bright Optoelectronics Corporation

LED IR 940NM 1206 SMD

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED IR 940NM 1206 SMD

Technical Specifications

Parameters and characteristics for this part

Specification	BIR-HM133A-TRB

Current - DC Forward (If) (Max) [Max]	50 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	1206 (3216 Metric)
Radiant Intensity (Ie) Min @ If [Min]	1.83 mW/sr
Type	Infrared (IR)
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ)	1.25 V
Wavelength	940 nm

LED IR 940NM 1206 SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If [Min]	Mounting Type	Viewing Angle	Package / Case	Orientation	Type	Voltage - Forward (Vf) (Typ)	Wavelength	Current - DC Forward (If) (Max) [Max]
American Bright Optoelectronics Corporation BIR-HM133A-TRB	85 °C	-40 °C	1.83 mW/sr	Surface Mount	60 °	1206 (3216 Metric)	Top View	Infrared (IR)	1.25 V	940 nm	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 940nm 1.25V 50mA 1.83mW/sr @ 50mA 60° 1206 (3216 Metric)
