3073F C555000

Active

Belden Inc.

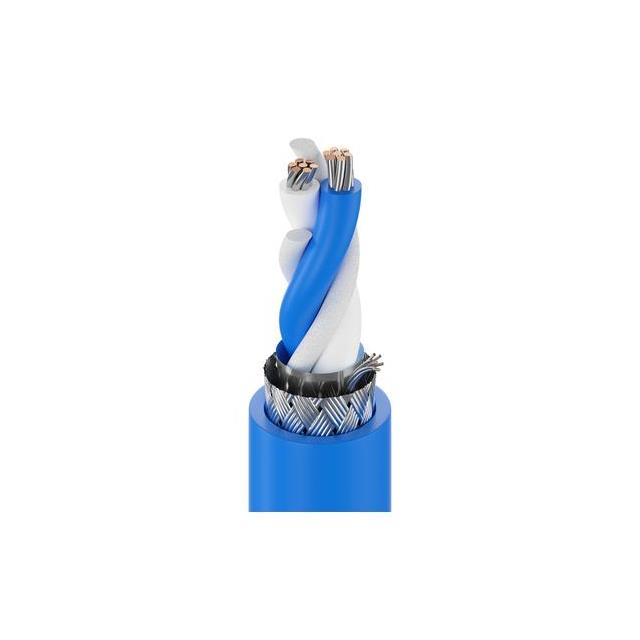

CABLE 2CON 18AWG BLUE SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2CON 18AWG BLUE SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	3073F C555000

Cable Type	Multi-Conductor
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.86 mm
Jacket (Insulation) Diameter [diameter]	0.388 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Blue
Number of Conductors	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage	100 %, 55 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	600 V
Wire Gauge	18 AWG

Part	Conductor Insulation	Features	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Shield Coverage	Number of Conductors	Jacket (Insulation) Material	Jacket Color	Wire Gauge	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 3073F C555000	Polyolefin (PO)	Drain Wire	26 AWG	7	Copper Tinned	55 % 100 %	2	Poly-Vinyl Chloride (PVC)	Blue	18 AWG	Braid Foil	1.346 mm	0.053 in	600 V	Multi-Conductor	-40 °C	75 ░C	Aluminum Copper Tinned	9.86 mm	0.388 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 5.79

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Blue 18 AWG Foil, Braid 5000' (1524.0m)
