4957F-0.75-5

Obsolete

3M (TC)

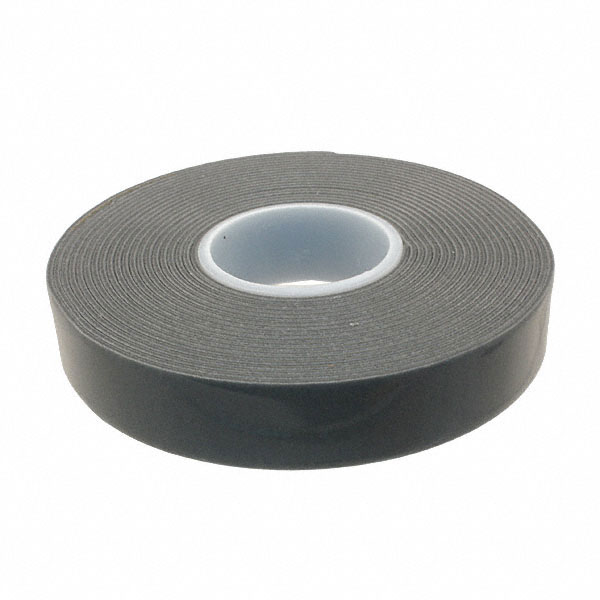

TAPE DBL SIDED GRAY 3/4"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAdhesive & Tape Selection Guide

4957F-0.75-5

Obsolete

3M (TC)

TAPE DBL SIDED GRAY 3/4"X5YDS

Deep-Dive with AI

DocumentsAdhesive & Tape Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4957F-0.75-5

Adhesive	Acrylic
Backing, Carrier	Polyester Film
Color	Gray
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	200 °F
Temperature Range	93 °C
Thickness	1.575 mm
Thickness	0.062 in
Thickness	62 mils
Thickness - Adhesive	60 mils
Thickness - Adhesive	1.524 mm
Thickness - Adhesive	0.06 "
Thickness - Backing, Carrier	0.002 "
Thickness - Backing, Carrier	0.051 mm
Thickness - Backing, Carrier	2 mils
Usage	General Purpose
Width	0.75 in
Width	19.05 mm
Width	0.75 in

4957F Series

Part	Usage	Tape Type	Length	Length	Length	Width [y]	Width [y]	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Color	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Thickness	Thickness	Thickness	Backing, Carrier	Temperature Range	Temperature Range	Shelf Life Start	Shelf Life	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width [x]	Width [x]	Width	Width	Width
3M (TC) 4957F-2-5	General Purpose	Double Coated Double Sided	4.6 m	15 ft	5 yd	2 "	50.8 mm	Acrylic	60 mils	1.524 mm	0.06 "	Gray	4 °C 40 °F	38 °C 100 °F	1.575 mm	0.062 in	62 mils	Polyester Film	200 °F	93 °C	Date of Shipment	24 Months	0.002 "	0.051 mm	2 mils
3M (TC) 4957F-1-5	General Purpose	Double Coated Double Sided	4.6 m	15 ft	5 yd			Acrylic	60 mils	1.524 mm	0.06 "	Gray	4 °C 40 °F	38 °C 100 °F	1.575 mm	0.062 in	62 mils	Polyester Film	200 °F	93 °C	Date of Shipment	24 Months	0.002 "	0.051 mm	2 mils	25.4 mm	1 in
3M (TC) 4957F-12-12(6)	General Purpose	Double Coated Double Sided	304.8 mm	12 "				Acrylic	60 mils	1.524 mm	0.06 "	Gray	4 °C 40 °F	38 °C 100 °F	1.575 mm	0.062 in	62 mils	Polyester Film	200 °F	93 °C	Date of Shipment	24 Months	0.002 "	0.051 mm	2 mils	304.8 mm	12 in
3M (TC) 4-5-4957F	General Purpose	Double Coated Double Sided	4.6 m	15 ft	5 yd			Acrylic	60 mils	1.524 mm	0.06 "	Gray	4 °C 40 °F	38 °C 100 °F	1.575 mm	0.062 in	62 mils	Polyester Film	200 °F	93 °C	Date of Shipment	24 Months	0.002 "	0.051 mm	2 mils	101.6 mm	4 "
3M (TC) 4957F-0.75-5	General Purpose	Double Coated Double Sided	4.6 m	15 ft	5 yd			Acrylic	60 mils	1.524 mm	0.06 "	Gray	4 °C 40 °F	38 °C 100 °F	1.575 mm	0.062 in	62 mils	Polyester Film	200 °F	93 °C	Date of Shipment	24 Months	0.002 "	0.051 mm	2 mils			0.75 in	19.05 mm	0.75 in
3M (TC) 4957F-0.5-5	General Purpose	Double Coated Double Sided	4.6 m	15 ft	5 yd			Acrylic	60 mils	1.524 mm	0.06 "	Gray	4 °C 40 °F	38 °C 100 °F	1.575 mm	0.062 in	62 mils	Polyester Film	200 °F	93 °C	Date of Shipment	24 Months	0.002 "	0.051 mm	2 mils			0.5 in	0.5 in	12.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4957F Series

Double Coated, Double Sided Tape Acrylic Adhesive Gray 0.75" (19.05mm) 3/4" X 15' (4.6m) 5 yds

Documents

Technical documentation and resources

Adhesive & Tape Selection Guide

Datasheet
