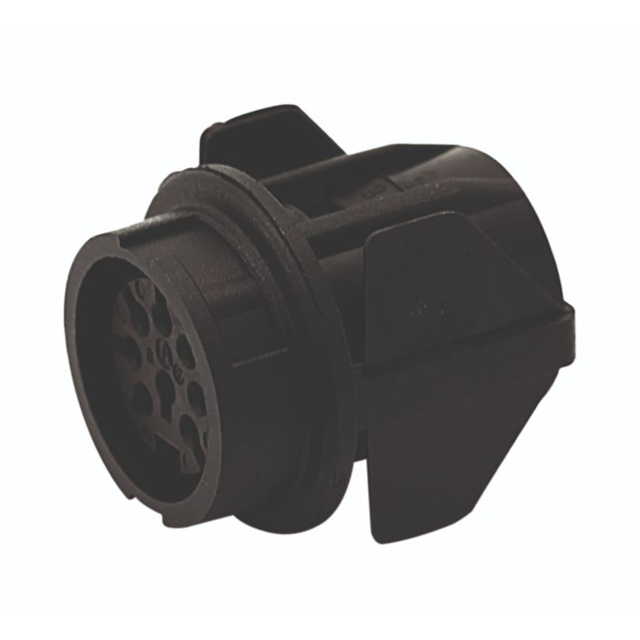

T 3277 550

Active

Amphenol Tuchel Industrial

CONN RCPT HSG FML 3P PNL MT SNAP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSG FML 3P PNL MT SNAP

Technical Specifications

Parameters and characteristics for this part

Specification	T 3277 550

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Plastic
Shell Size - Insert	M16-3
Shielding	Unshielded
Type	For Female Sockets

Part	Current Rating (Amps)	Ingress Protection	Shell Material	Color	Fastening Type	Orientation	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Shell Finish	Contact Finish - Mating	Voltage Rating	Primary Material	Termination	Mounting Type	Mounting Feature	Contact Size	Shielding	Type	Insert Material	Material Flammability Rating	Housing Color	Note	Contact Type	Contact Shape
Amphenol Tuchel Industrial T 3277 100	10 A	IP40	Die Cast	Silver	Bayonet Lock	Keyed	Receptacle Female Sockets	100 °C	-40 °C	M16-3	Nickel	Silver	250 VDC	Metal
Amphenol Tuchel Industrial T 3277 900	10 A	IP40	Die Cast	Silver	Bayonet Lock	Keyed	Receptacle Female Sockets	100 °C	-40 °C	M16-3	Nickel	Silver	250 VDC	Metal	Solder	Through Hole Right Angle
Amphenol Tuchel Industrial T 3277 050		IP40	Plastic		Bayonet Lock	Keyed	Receptacle Housing	100 °C	-40 °C	M16-3							Bulkhead - Rear Side Nut	1.5 mm	Unshielded	For Female Sockets	Thermoplastic	UL94 V-0	Black	Contacts Not Included	Crimp	Circular
Amphenol Tuchel Industrial T 3277 500	10 A	IP40	Plastic		Bayonet Lock	Keyed	Receptacle Female Sockets	100 °C	-40 °C	M16-3		Silver	250 VDC	Plastic		Panel Mount Snap-In
Amphenol Tuchel Industrial T 3277 550		IP40	Plastic		Bayonet Lock	Keyed	Receptacle Housing	100 °C	-40 °C	M16-3						Panel Mount Snap-In		1.5 mm	Unshielded	For Female Sockets	Thermoplastic	UL94 V-0	Black	Contacts Not Included	Crimp	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle Housing Panel Mount, Snap-In
