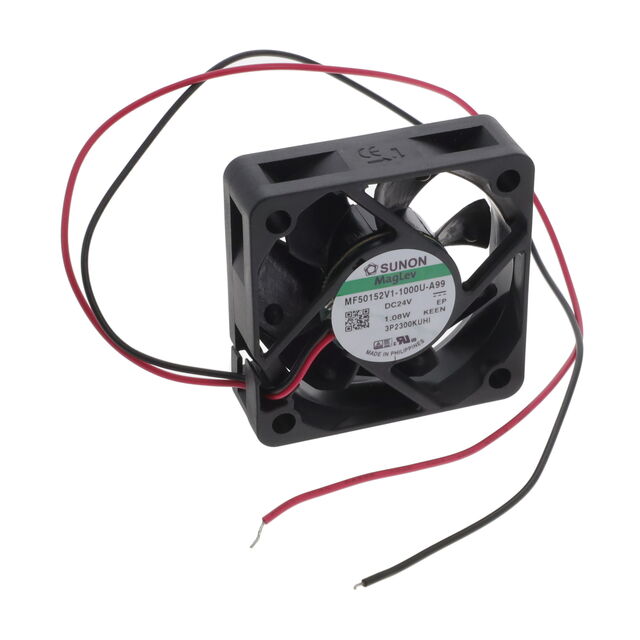

MF50152V1-1000U-A99

Active

Sunon Fans

FAN AXIAL 50X15MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 50X15MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MF50152V1-1000U-A99

Air Flow	17 CFM
Air Flow	0.476 m³/min
Approval Agency	TUV, cUR, UL, CE
Current Rating (Amps)	0.042 A
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	33 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.01 W
RPM	6100 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Static Pressure	0.23 in H2O
Static Pressure	57.3 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Width [x]	15 mm

FAN AXIAL 50X15MM 24VDC WIRE

Part	Voltage - Rated	Current Rating (Amps)	Lifetime @ Temp.	Noise	RPM	Material - Blade	Approval Agency	Width [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Features	Fan Type	Static Pressure	Static Pressure	Air Flow	Air Flow	Termination
Sunon Fans MF50152V1-1000U-A99	24 VDC	0.042 A	70000 Hrs	33 dB(A)	6100 RPM	Polybutylene Terephthalate (PBT)	CE, cUR, TUV, UL	15 mm	70 °C	70 °C	-10 °C	-10 °C	1.01 W	50 mm	50 mm	Auto Restart	Tubeaxial	0.23 in H2O	57.3 Pa	17 CFM	0.476 m³/min	2 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 50mm L x 50mm H Vapo-Bearing™ 17.0 CFM (0.476m³/min) 2 Wire Leads
