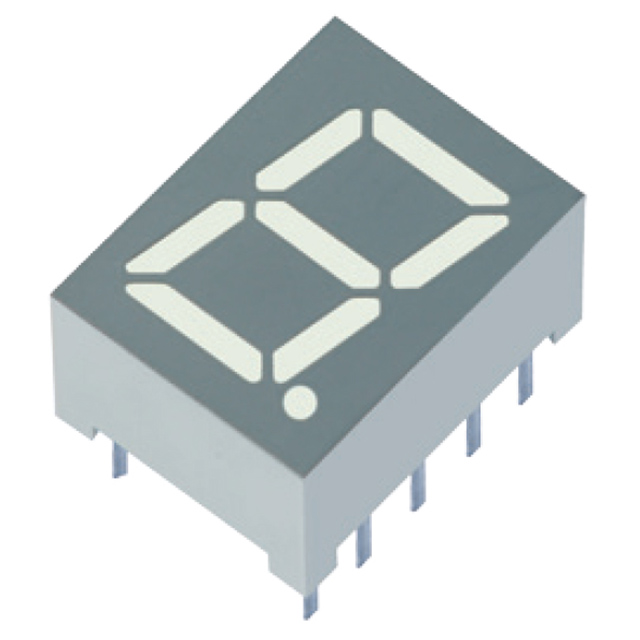

XDUR08C

Active

SunLED

DISPLAY 7SEG 0.39" SGL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDUR08C

Active

SunLED

DISPLAY 7SEG 0.39" SGL RED 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDUR08C

Color	Red
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	0.39 in
Digit/Alpha Size	10 mm
Display Type	7-Segment
Millicandela Rating	1 mcd
Number of Characters [custom]	1
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	13 mm
Size / Dimension [x]	0.512 in
Size / Dimension [y]	0.394 in
Size / Dimension [y]	10 mm
Size / Dimension [z]	0.276 in
Size / Dimension [z]	7 mm
Voltage - Forward (Vf) (Typ)	1.9 V
Wavelength - Peak	627 nm

XDUR08 Series

Part	Display Type	Power Dissipation (Max) [Max]	Color	Digit/Alpha Size	Digit/Alpha Size	Number of Characters [custom]	Current - Test	Millicandela Rating	Common Pin	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak
SunLED XDUR08C	7-Segment	75 mw	Red	0.39 in	10 mm	1	10 mA	1 mcd	Common Cathode	13 mm	0.512 in	0.276 in	0.394 in	7 mm	10 mm	1.9 V	627 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2028	$ 0.75

Description

General part information

XDUR08 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.9V 10mA 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) 10-DIP (0.300", 7.62mm)
