2861014

Active

Phoenix Contact

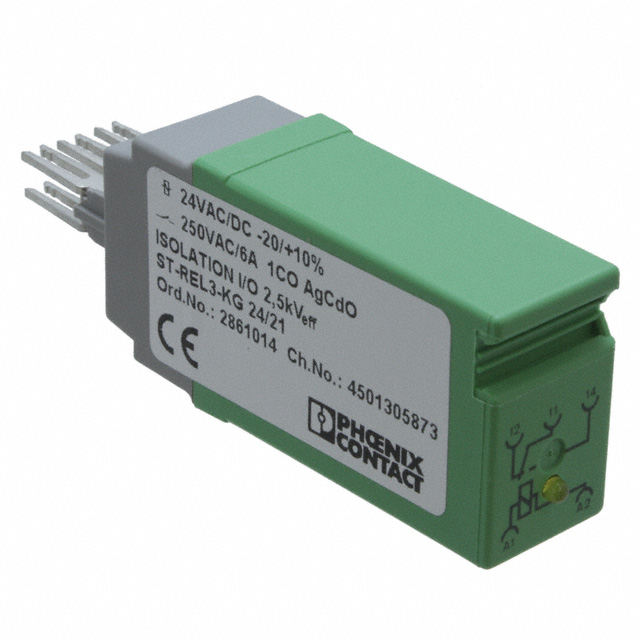

RELAY GEN PURPOSE SPDT 6A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 24V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 6A 24V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Relay Type	Release Time	Termination Style	Coil Type	Contact Rating (Current)	Contact Form	Operate Time	Approval Agency	Coil Current	Coil Resistance	Contact Material	Mounting Type	Switching Voltage
Phoenix Contact 2861014	50 °C	-20 C	24 VAC	General Purpose	11 ms	Plug In	Non Latching	6 A	SPDT (1 Form C)	7 ms	GOST	21 mA	114.3 Ohms	Silver Nickel (AgNi)	Socketable	250 VAC, 250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 170.51

General part information

General Purpose Relay SPDT (1 Form C) 24VAC/DC Coil Socketable

Technical documentation and resources
