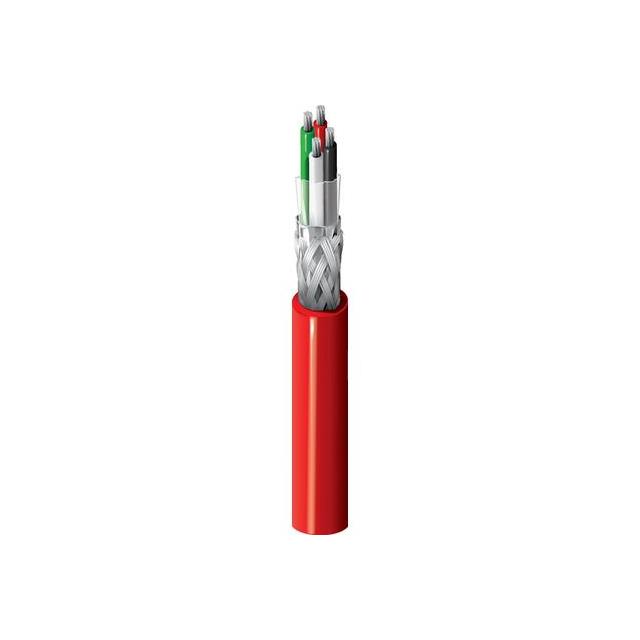

Specification	83504 002500

Cable Type	Conductor, Multi
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	32 AWG
Jacket (Insulation) Diameter	0.144 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length	500 ft
Number of Conductors	4
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-70 °C
Ratings	Style, UL, CMP
Shield Coverage	85%, 100%
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid, Foil
Usage	Instrumentation, Control, Audio
Voltage	300 V
Wire Gauge	24 AWG

83504 Series

Part	Jacket (Insulation) Diameter	Shield Type	Jacket (Insulation) Thickness	Ratings	Number of Conductors	Conductor Material	Jacket (Insulation) Material	Length	Cable Type	Usage	Voltage	Conductor Insulation	Wire Gauge	Jacket Color	Operating Temperature (Min)	Operating Temperature (Max)	Conductor Strand Gauge	Conductor Strand Count	Shield Coverage	Shield Material
Belden Inc. 83504 002100	0.144 in	Braid Foil	0.014 in	CMP Style UL	4	Copper Tinned	Fluorinated Ethylene-Propylene (FEP) Plenum	100 ft	Conductor Multi	Audio Control Instrumentation	300 V	Fluorinated Ethylene-Propylene (FEP)	24 AWG	Red	-70 °C	200 °C	32 AWG	7 Strands	100% 85%	Aluminum Copper Tinned
Belden Inc. 83504 002500	0.144 in	Braid Foil	0.014 in	CMP Style UL	4	Copper Tinned	Fluorinated Ethylene-Propylene (FEP) Plenum	500 ft	Conductor Multi	Audio Control Instrumentation	300 V	Fluorinated Ethylene-Propylene (FEP)	24 AWG	Red	-70 °C	200 °C	32 AWG	7 Strands	100% 85%	Aluminum Copper Tinned
