TDA7269
ActiveSTMicroelectronics
IC AMP AB STEREO 10W 11MULTIWATT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TDA7269
ActiveSTMicroelectronics
IC AMP AB STEREO 10W 11MULTIWATT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TDA7269 |
|---|---|
| Features | Mute, Short-Circuit and Thermal Protection, Depop, Standby |
| Max Output Power x Channels @ Load | 10 W, 2 channels |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Output Type | 2-Channel (Stereo) |

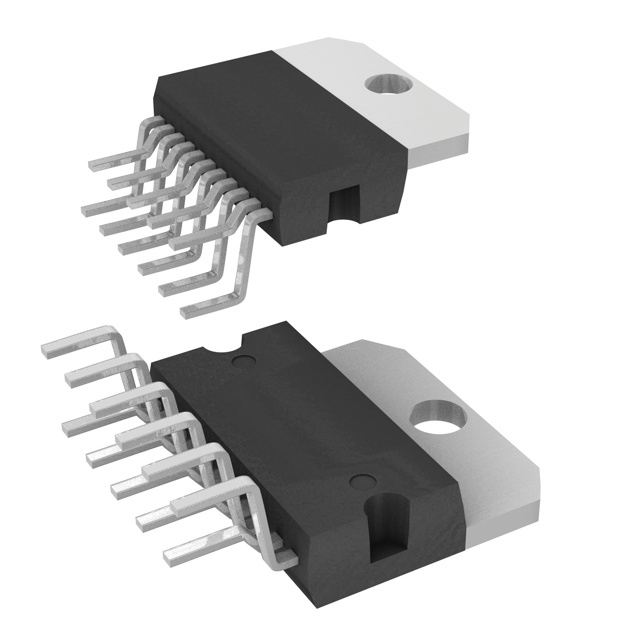

| Package / Case | Multiwatt-11 (Vertical, Bent and Staggered Leads) |
| Supplier Device Package | 11-Multiwatt |
| Type | Class AB |
| Voltage - Supply [Max] | 20 V |
| Voltage - Supply [Min] | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TDA7269 Series
IC AMP AB STEREO 10W 11MULTIWATT
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Max Output Power x Channels @ Load | Features | Package / Case | Mounting Type | Type | Output Type | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TDA7269 | 70 °C | 0 °C | 11-Multiwatt | 2 channels, 10 W | Depop, Mute, Short-Circuit and Thermal Protection, Standby | Multiwatt-11 (Vertical, Bent and Staggered Leads) | Through Hole | Class AB | 2-Channel (Stereo) | 20 V | -5 V |
Description
General part information
TDA7269 Series
Amplifier IC 2-Channel (Stereo) Class AB 11-Multiwatt
Documents
Technical documentation and resources
