LX7302CLQ-TR

Active

Microsemi Corporation

IC REG CTRLR BUCK 20QFN

Search across all available documentation for this part.

Active

Microsemi Corporation

IC REG CTRLR BUCK 20QFN

Technical Specifications

Parameters and characteristics for this part

Specification	LX7302CLQ-TR

Clock Sync	False
Control Features	Enable, Current Limit, On Time Control, Power Good
Frequency - Switching [Max]	1 MHz
Frequency - Switching [Min]	200 kHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 C
Operating Temperature [Min]	0 °C
Output Configuration	Positive
Output Phases	1
Output Type	Transistor Driver

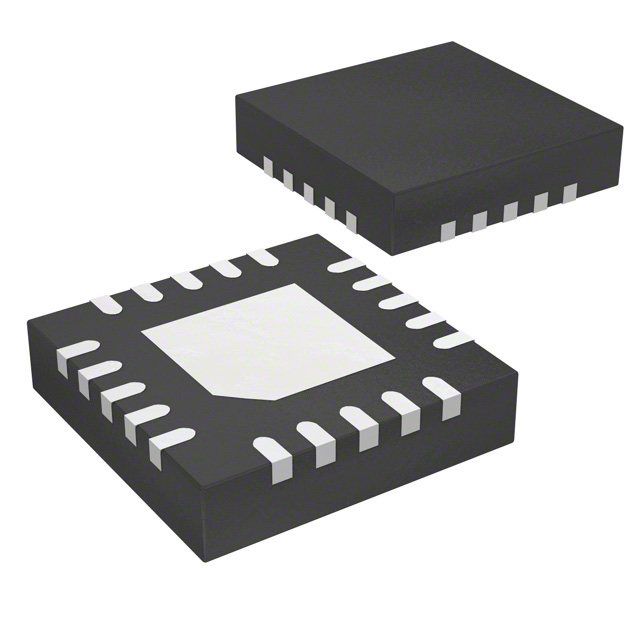

Package / Case	20-WFQFN Exposed Pad
Supplier Device Package	20-QFN (3x3)
Synchronous Rectifier	True
Topology	Buck
Voltage - Supply (Vcc/Vdd) [Max]	26 V
Voltage - Supply (Vcc/Vdd) [Min]	5 V

Part	Control Features	Mounting Type	Clock Sync	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Frequency - Switching [Max]	Frequency - Switching [Min]	Output Configuration	Package / Case	Synchronous Rectifier	Number of Outputs	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Output Phases	Supplier Device Package	Function	Topology
Microsemi Corporation LX7302CLQ	Current Limit Enable On Time Control Power Good	Surface Mount		0 °C	85 C	Transistor Driver	1 MHz	200 kHz	Positive	20-WFQFN Exposed Pad		1	26 V	5 V	1	20-QFN (3x3)	Step-Down	Buck
Microsemi Corporation LX7302CLQ-TR	Current Limit Enable On Time Control Power Good	Surface Mount		0 °C	85 C	Transistor Driver	1 MHz	200 kHz	Positive	20-WFQFN Exposed Pad		1	26 V	5 V	1	20-QFN (3x3)	Step-Down	Buck

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buck Regulator Positive Output Step-Down DC-DC Controller IC 20-QFN (3x3)
