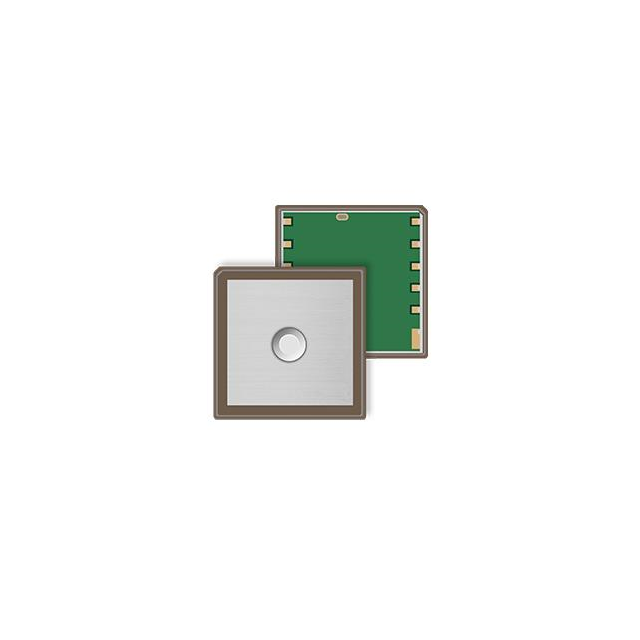

LC86LIAMD
ObsoleteQuectel
RF TXRX MOD NAV CER PATCH SMD
Deep-Dive with AI
Search across all available documentation for this part.
LC86LIAMD
ObsoleteQuectel
RF TXRX MOD NAV CER PATCH SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LC86LIAMD |
|---|---|
| Antenna Type | Integrated, Ceramic Patch |
| Data Rate | 115.2 kbps |
| Frequency | 1.575 GHz, 1.601 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 12-SMD Module |
| Protocol | GLONASS, GNSS, Galileo, GPS |
| RF Family/Standard | Navigation |
| Sensitivity | -167 dBm |
| Serial Interfaces | UART |
| Utilized IC / Part | AG3331 |
| Voltage - Supply [Max] | 4.3 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LC86 Series
Navigation Galileo, GLONASS, GPS, GNSS Transceiver Module 1.575GHz, 1.601GHz Integrated, Ceramic Patch Surface Mount
Documents
Technical documentation and resources
No documents available
