DC-03BFMA-QL8MPP

Active

Amphenol LTW

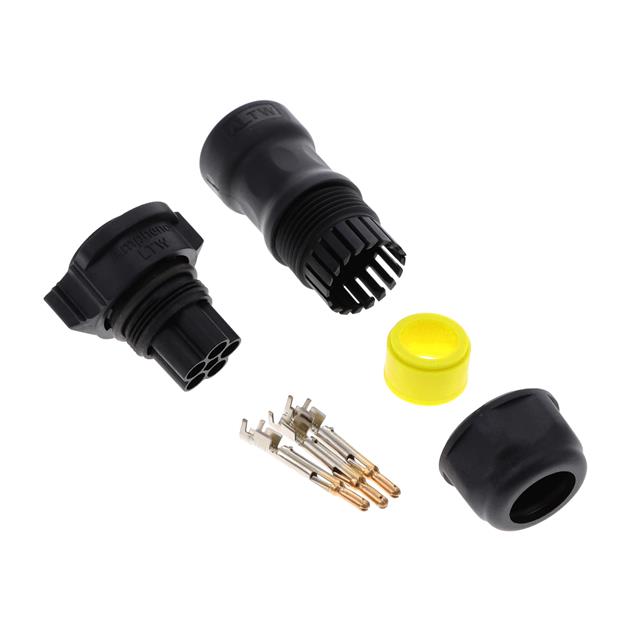

X-LOK, LARGE SIZE, 20A, 03 PINS,

Deep-Dive with AI

Search across all available documentation for this part.

DC-03BFMA-QL8MPP

Active

Amphenol LTW

X-LOK, LARGE SIZE, 20A, 03 PINS,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC-03BFMA-QL8MPP

Cable Opening [custom]	12 mm, 10 mm
Cable Opening [custom]	0.394 in, 0.472 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VAC

DC-03BFMA Series

Part	Primary Material	Contact Shape	Contact Type	Mounting Type	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Features	Ingress Protection	Shielding	Orientation	Note	Type	Insert Material	Shell Size - Insert	Shell Material	Color	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Number of Positions	Termination	Current Rating (Amps)	Voltage Rating	Contact Material	Fastening Type	Contact Finish - Mating	Material Flammability Rating	Cable Opening [custom]	Cable Opening [custom]	Backshell Material, Plating
Amphenol LTW DC-03BFMA-QL8LNP	Plastic	Circular	Crimp	Free Hanging (In-Line)	Black	-40 °C	105 ░C	Plug Housing	Backshell	IP68 - Dust Tight Waterproof	Unshielded	Keyed	Contacts Not Included	For Male Pins	Thermoplastic	D
Amphenol LTW DC-03BFMA-QL8LPP	Plastic			Free Hanging (In-Line)		-40 °C	105 ░C	Male Pins Plug	Backshell	IP68 - Dust Tight Waterproof	Unshielded	Keyed			Polyamide (PA) Nylon Glass Filled	D	Glass Filled Nylon Polyamide (PA)	Black	12 mm	14 mm	0.472 in	0.551 in	3	Crimp	20 A	300 VAC	Copper Alloy	Push-Pull	Gold	UL94 V-0
Amphenol LTW DC-03BFMA-QL8SNP	Plastic	Circular	Crimp	Free Hanging (In-Line)	Black	-40 °C	105 ░C	Plug Housing	Backshell	IP68 - Dust Tight Waterproof	Unshielded	Keyed	Contacts Not Included	For Male Pins	Thermoplastic	D
Amphenol LTW DC-03BFMA-QL8MPP	Plastic			Free Hanging (In-Line)		-40 °C	105 ░C	Male Pins Plug	Backshell	IP68 - Dust Tight Waterproof	Unshielded	Keyed			Polyamide (PA) Nylon Glass Filled	D	Glass Filled Nylon Polyamide (PA)	Black					3	Crimp	20 A	300 VAC	Copper Alloy	Push-Pull	Gold	UL94 V-0	10 mm 12 mm	0.394 in 0.472 in
Amphenol LTW DC-03BFMA-QL8APP	Plastic			Free Hanging (In-Line)		-40 °C	105 ░C	Male Pins Plug	Backshell	IP68 - Dust Tight Waterproof	Unshielded	Keyed			Thermoplastic	D		Black						Crimp	20 A	300 VDC	Copper Alloy		Gold				Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.73
		10	$ 7.46
		25	$ 6.74
		50	$ 6.25
		100	$ 5.81
		250	$ 5.28
		500	$ 4.93
		1000	$ 4.61

Description

General part information

DC-03BFMA Series

3 (Power) Position Circular Connector Plug, Male Pins Crimp
