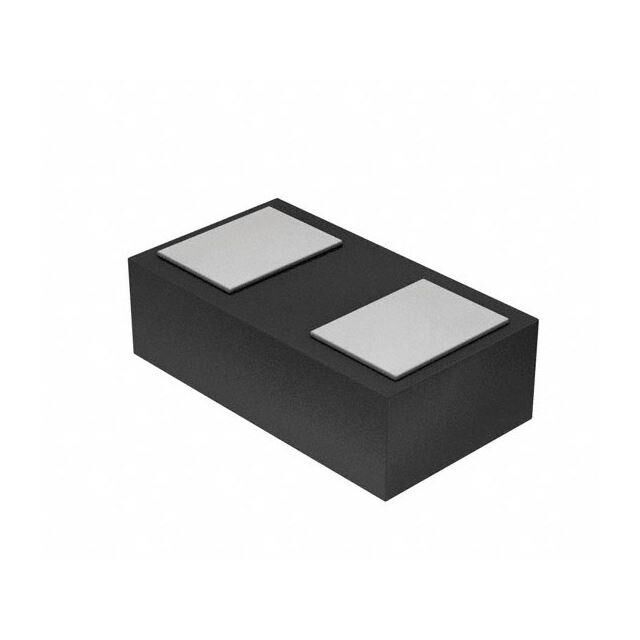

CDBF0330-HF

Active

Comchip Technology

DIODE SCHOTTKY 30V 350MA 1005

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 30V 350MA 1005

Technical Specifications

Parameters and characteristics for this part

Specification	CDBF0330-HF

Capacitance @ Vr, F	50 pF
Current - Average Rectified (Io)	350 mA
Mounting Type	Surface Mount
Operating Temperature - Junction	125 °C
Package / Case	1005 (2512 Metric)
Reverse Recovery Time (trr)	6.4 ns
Speed	200 mA, 500 ns
Supplier Device Package	1005/SOD-323F
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	600 mV

DIODE SCHOTTKY 30V 350MA 1005

Part	Capacitance @ Vr, F	Operating Temperature - Junction	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Technology	Mounting Type	Reverse Recovery Time (trr)	Supplier Device Package
Comchip Technology CDBF0330-HF	50 pF	125 °C	1005 (2512 Metric)	30 V	200 mA, 500 ns	600 mV	350 mA	Schottky	Surface Mount	6.4 ns	1005/SOD-323F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 30 V 350mA Surface Mount 1005/SOD-323F
