F2199CA03

Active

Curtis Industries

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Curtis Industries

PWR ENT RCPT IEC320-C14 PANEL QC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

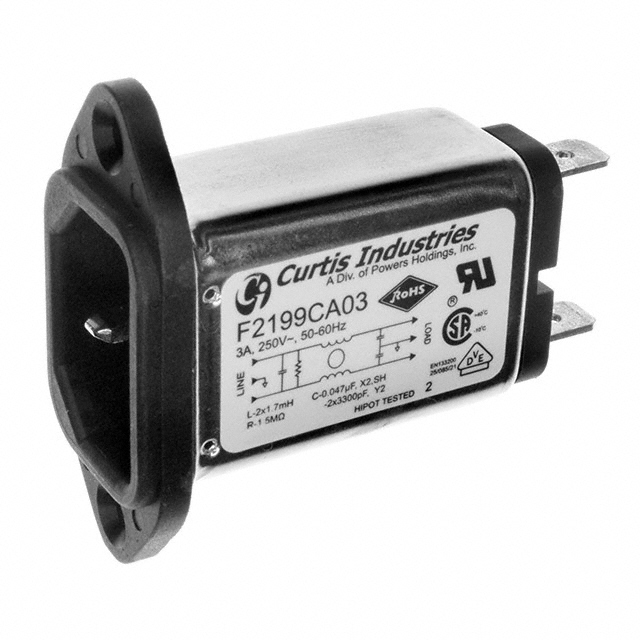

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	F2199CA03	F2199C Series

Accomodates a Fuse	False	False
Approval Agency	CSA, CE, UL, TUV	CSA, CE, UL, TUV
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	3 A	1 - 10 A
Current Rating - Filter	3 A	1 - 10 A
Features	Front or Rear Side Mount	Front or Rear Side Mount
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions	Variable Size	Variable Size
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Termination	Termination	Termination	Approval Agency	Filter Type	Connector Type	Panel Cutout Dimensions	Voltage Rating - Appliance Inlet	Mounting Type	Current Rating - Appliance Inlet	Connector Style	Current Rating - Filter	Features
Curtis Industries F2199CA01	0.25 in	6.3 mm	Quick Connect	CE, CSA, TUV, UL	Filtered (EMI, RFI) - Commercial	Male Blades, Receptacle	Variable Size	250 VAC	Flange, Panel Mount	1 A	IEC 320-C14	1 A	Front or Rear Side Mount
Curtis Industries F2199CA03	0.25 in	6.3 mm	Quick Connect	CE, CSA, TUV, UL	Filtered (EMI, RFI) - Commercial	Male Blades, Receptacle	Variable Size	250 VAC	Flange, Panel Mount	3 A	IEC 320-C14	3 A	Front or Rear Side Mount
Curtis Industries F2199CA10	0.25 in	6.3 mm	Quick Connect	CE, CSA, TUV, UL	Filtered (EMI, RFI) - Commercial	Male Blades, Receptacle	Variable Size	250 VAC	Flange, Panel Mount	10 A	IEC 320-C14	10 A	Front or Rear Side Mount
