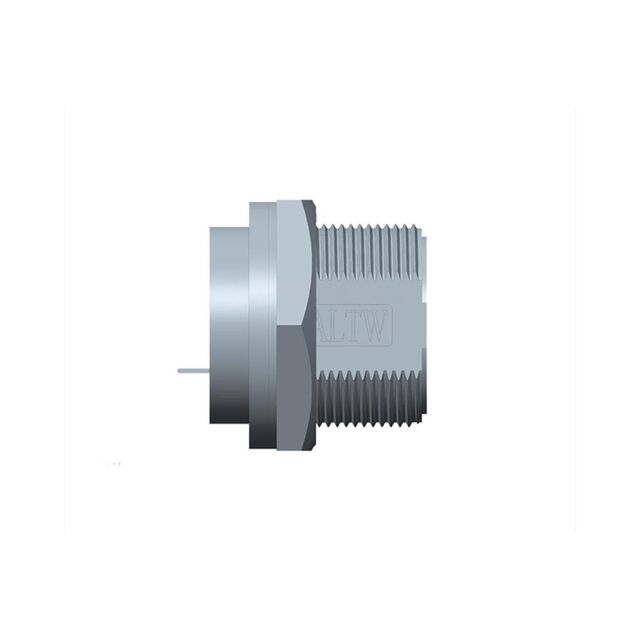

UB-20PMFP-SC8001

Active

Amphenol LTW

CONN RCPT USB2.0 TYPEB 4POS PCB

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT USB2.0 TYPEB 4POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	UB-20PMFP-SC8001

Connector Type	USB-B
Contact Finish	Gold
Gender	Receptacle
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut; Vertical
Mounting Type	Through Hole, Panel Mount
Number of Contacts [custom]	4
Number of Ports	1
Specifications	USB 2.0
Termination	Solder

Part	Cable Type	Connector Type	Shielding	Usage	Length	Length	Color	Number of Contacts [custom]	Insulation Color	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Gender	Mounting Feature	Specifications	Current Rating (Amps)	Mounting Type	Number of Ports	Contact Finish
Amphenol LTW UB-20PMFP-SC8003	Round	USB B Female Receptacle to Rectangular 5 pos Plug	Shielded	Industrial Environments - IP68	50 mm	0.16 ft	Black
Amphenol LTW UB-20PMFP-LC7001		USB-B						4	Black	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Solder	Receptacle	Bulkhead - Front Side Nut; Vertical	USB 2.0	1.5 A	Panel Mount Through Hole	1
Amphenol LTW UB-20PMFP-SC8001		USB-B						4		IP68 - Dust Tight Waterproof			Solder	Receptacle	Bulkhead - Front Side Nut; Vertical	USB 2.0		Panel Mount Through Hole	1	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Panel Mount, Through Hole

Technical documentation and resources

No documents available
