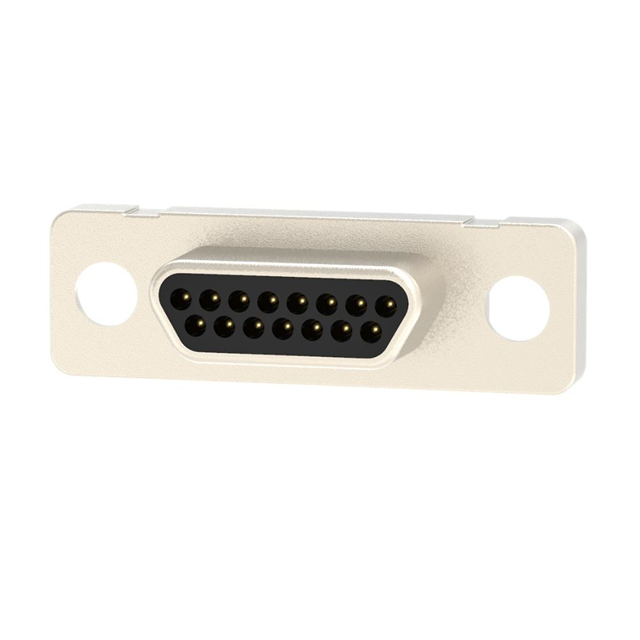

580-M15-113L002

Active

MH Connectors

CONN MICRO-D MALE 15P VRT PCB 30

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

580-M15-113L002

Active

MH Connectors

CONN MICRO-D MALE 15P VRT PCB 30

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	580-M15-113L002

Color	Black
Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Liquid Crystal Polymer (LCP)
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Zinc Alloy
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05
Termination	Solder
Voltage Rating	60 VDC

580-M15 Series

Part	Contact Finish	Flange Feature	Dielectric Material	Number of Rows	Connector Type	Color	Current Rating (Amps)	Number of Positions	Features	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Connector Style	Wire Gauge	Mounting Type	Termination
MH Connectors 580-M15-103L001	Gold	Housing/Shell (Unthreaded)	Liquid Crystal Polymer (LCP)	2	Male Pins Plug	Black	2 A	15	Shielded	0.043	0.05	Signal	60 VDC	125 °C	-40 °C	Brass	UL94 V-0	15 µin	0.38 µm	Nickel Plated Zinc Alloy	D-Type Micro-D	26 AWG
MH Connectors 580-M15-113L001	Gold	Housing/Shell (Unthreaded)	Liquid Crystal Polymer (LCP)	2	Male Pins Plug	Black	2 A	15	Shielded	0.043	0.05	Signal	60 VDC	125 °C	-40 °C	Brass	UL94 V-0	15 µin	0.38 µm	Nickel Plated Zinc Alloy	D-Type Micro-D		Panel Mount Through Hole	Solder
MH Connectors 580-M15-203L001	Gold	Housing/Shell (Unthreaded)	Liquid Crystal Polymer (LCP)	2	Receptacle Female Sockets	Black	2 A	15	Shielded	0.043	0.05	Signal	60 VDC	125 °C	-40 °C	Brass	UL94 V-0	15 µin	0.38 µm	Nickel Plated Zinc Alloy	D-Type Micro-D	26 AWG
MH Connectors 580-M15-213L002	Gold	Housing/Shell (Unthreaded)	Liquid Crystal Polymer (LCP)	2	Receptacle Female Sockets	Black	2 A	15	Shielded	0.043	0.05	Signal	60 VDC	125 °C	-40 °C	Brass	UL94 V-0	30 Áin	0.76 Ám	Nickel Plated Zinc Alloy	D-Type Micro-D		Panel Mount Through Hole	Solder
MH Connectors 580-M15-113L002	Gold	Housing/Shell (Unthreaded)	Liquid Crystal Polymer (LCP)	2	Male Pins Plug	Black	2 A	15	Shielded	0.043	0.05	Signal	60 VDC	125 °C	-40 °C	Brass	UL94 V-0	30 Áin	0.76 Ám	Nickel Plated Zinc Alloy	D-Type Micro-D		Panel Mount Through Hole	Solder
MH Connectors 580-M15-103L002	Gold	Housing/Shell (Unthreaded)	Liquid Crystal Polymer (LCP)	2	Male Pins Plug	Black	2 A	15	Shielded	0.043	0.05	Signal	60 VDC	125 °C	-40 °C	Brass	UL94 V-0	30 Áin	0.76 Ám	Nickel Plated Zinc Alloy	D-Type Micro-D	26 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.05
		10	$ 19.08

Description

General part information

580-M15 Series

15 Position D-Type, Micro-D Plug, Male Pins Connector
