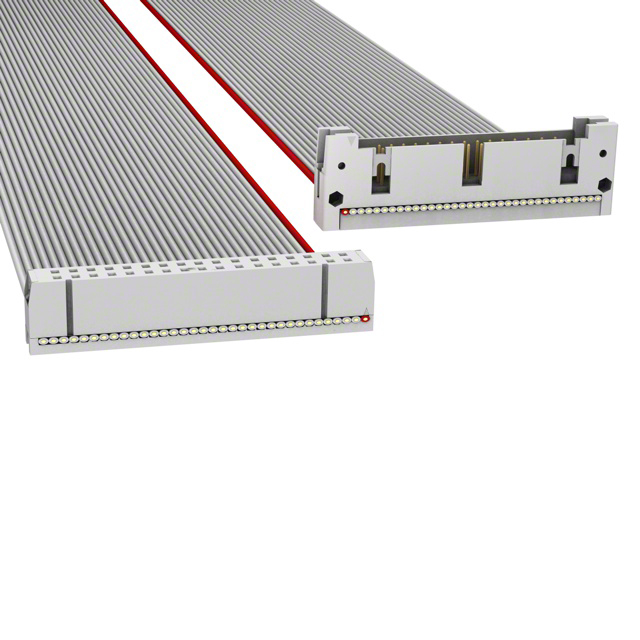

H3AKH-3418G

Active

Assmann WSW Components

IDC CBL - HHSC34H/AE34G/HHPK34H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSC34H/AE34G/HHPK34H

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Color	Connector Type	Cable Termination	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Contact Finish	Features	Length	Length	Length	Length [x]	Length [x]
Assmann WSW Components H3AKH-3406M	Unshielded	Multiple Ribbon	Socket to Plug	IDC	34	2	15 µin	0.38 µm	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold	Polarizing Key	152.4 mm	6 "	0.5 '
Assmann WSW Components H3AKH-3418M	Unshielded	Multiple Ribbon	Socket to Plug	IDC	34	2	15 µin	0.38 µm	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold	Polarizing Key				457.2 mm	1.5 ft
Assmann WSW Components H3AKH-3418G	Unshielded		Socket to Plug	IDC	34	2	15 µin	0.38 µm	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold	Polarizing Key				457.2 mm	1.5 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
