51-282.025

Active

EAO

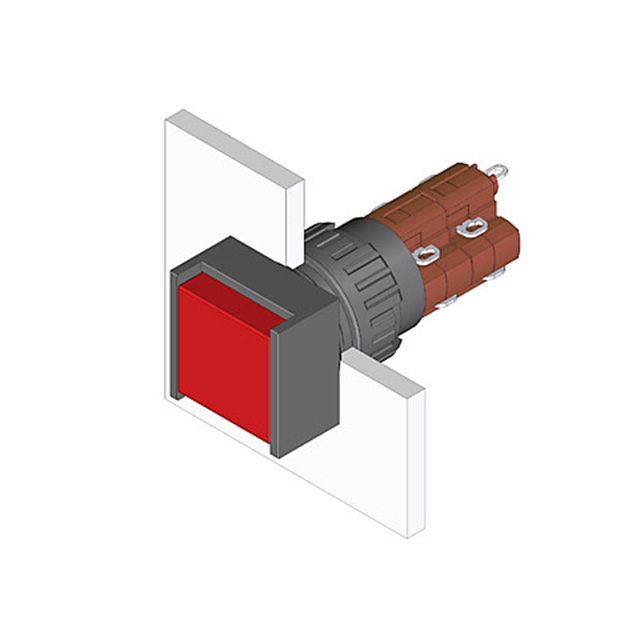

PUSHBUTTON SWITCH, 51 SERIES, 16.2 MM, DPST-NO, DPST-NC, MAINTAINED, SQUARE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

51-282.025

Active

EAO

PUSHBUTTON SWITCH, 51 SERIES, 16.2 MM, DPST-NO, DPST-NC, MAINTAINED, SQUARE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	51-282.025

Actuator Marking	No Marking
Actuator Type	Square, Button (Not Included)
Circuit	4PST-2NO/2NC
Current Rating (Amps)	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Off, Off-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	250 V

51-282 Series

PUSHBUTTON SWITCH, 51 SERIES, 16.2 MM, DPST-NO, DPST-NC, MAINTAINED, SQUARE

Part	Ingress Protection	Actuator Type	Termination Style	Type	Actuator Marking	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Mounting Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Voltage Rating - AC	Circuit
EAO 51-282.025	IP65 - Dust Tight, Water Resistant	Square, Button (Not Included)	Solder Lug	Standard	No Marking	1000000 Cycles	55 °C	-25 °C	Off-On, On-Off	Panel Mount, Front	16 mm	5 A	250 V	4PST-2NO/2NC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.79
		10	$ 51.68
		100	$ 44.17
Newark	Each	1	$ 59.64
		5	$ 56.66
		10	$ 53.67

Description

General part information

51-282 Series

The 51 series Illuminated Pushbutton switch with hose-proof front (IP65) can be supplied with snap-action or low-level switching elements. The equipment (switches) for raised mounting are protected against accidental operation by the extended sides of the bezel. Flush mounting equipment excels with best available agronomy and low down height. To supplement the range of illuminated pushbuttons, it can offer a hose-proof safety keylock switch with various lock numbers.
