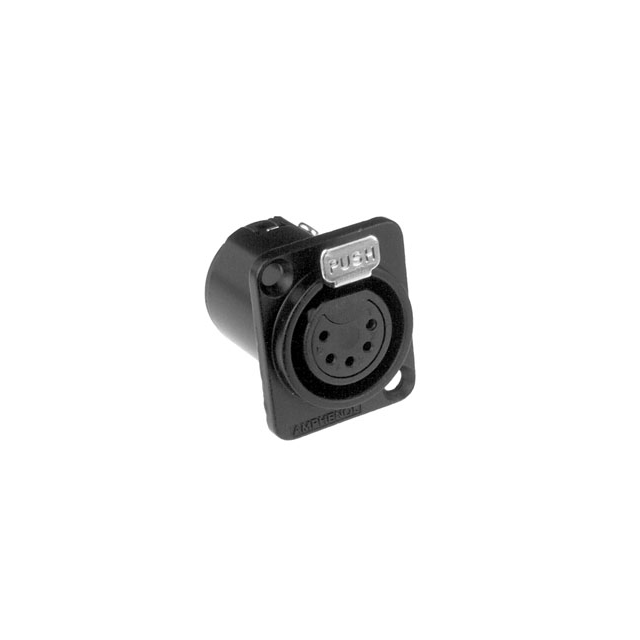

AC5FDZB BULK

Active

Amphenol Sine Systems Corp

METAL PANEL MOUNT 5 SKT BLACK BU

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

METAL PANEL MOUNT 5 SKT BLACK BU

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AC5FDZB BULK	AC5F Series

Applications	Audio	Audio
Backshell Material, Plating	-	Polyphenylene Ether (PPE)
Color	Black	Silver, Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Silver	Silver, Gold
Contact Finish Thickness - Mating	-	1.97 Áin
Contact Finish Thickness - Mating	-	0.05 Ám
Contact Material	Brass	Brass, Bronze
Current Rating (Amps)	7.5 A	3 - 7.5 A
Fastening Type	Latch Lock	Latch Lock
Features	-	Ground, Cable Clamp, Backshell, Board Guide
Ingress Protection	IP40	IP40
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Mounting Type	-	Free Hanging (In-Line), Through Hole, Panel Mount
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal, Plastic
Shell Finish	Black	Nickel, Black
Shell Material	Zinc Die Cast	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	Unshielded	Shielded, Unshielded
Termination	-	Solder

METAL PANEL MOUNT 5 SKT BULK

Part	Applications	Material Flammability Rating	Current Rating (Amps)	Mounting Feature	Features	Ingress Protection	Shielding	Fastening Type	Shell Material	Color	Shell Size - Insert	Connector Type	Orientation	Shell Finish	Contact Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Primary Material	Mounting Type	Backshell Material, Plating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination
Amphenol Sine Systems Corp AC5FDZ BULK	Audio	UL94 V-0	7.5 A	Flange	Ground	IP40	Shielded	Latch Lock	Zinc Die Cast	Silver	XLR	Female Sockets, Plug	Keyed	Nickel	Brass	Silver	-25 °C	75 ░C	Glass Filled, Nylon 6/6, Polyamide (PA66)	Metal
Amphenol Sine Systems Corp AC5F BULK	Audio	UL94 V-0	7.5 A		Backshell, Cable Clamp	IP40	Unshielded	Latch Lock	Zinc Die Cast	Silver	XLR	Female Sockets, Plug	Keyed	Nickel	Brass	Silver	-25 °C	75 ░C		Metal	Free Hanging (In-Line)	Polyphenylene Ether (PPE)
Amphenol Sine Systems Corp AC5FBV-AU-PRE	Audio	UL94 V-0	3 A	Flange	Board Guide	IP40	Unshielded	Latch Lock		Black, Silver	XLR	Female Sockets, Plug	Keyed		Bronze	Gold	-25 °C	75 ░C	Glass Filled, Nylon 6/6, Polyamide (PA66)	Plastic	Panel Mount, Through Hole		1.97 Áin	0.05 Ám	Solder
Amphenol Sine Systems Corp AC5FDZB BULK	Audio	UL94 V-0	7.5 A	Flange		IP40	Unshielded	Latch Lock	Zinc Die Cast	Black	XLR	Female Sockets, Plug	Keyed	Black	Brass	Silver	-25 °C	75 ░C	Glass Filled, Nylon 6/6, Polyamide (PA66)	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	300	$ 9.22

General part information

5 Position Circular Connector Plug, Female Sockets Solder Cup
