S16B-PADSS-1

Active

JST Sales America Inc.

CONN HEADER R/A 16POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 16POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	S16B-PADSS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Height [z]	10.49 mm
Insulation Height [z]	0.413 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Connector Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Fastening Type	Mounting Type	Style	Insulation Height [z]	Insulation Height [z]	Contact Type	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Termination	Number of Positions Loaded	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Contact Material	Number of Positions	Features	Contact Finish - Post	Number of Rows	Voltage Rating	Current Rating (Amps)
JST Sales America Inc. S16B-PADSS-1	Header	Square	-25 °C	85 °C	0.118 in	3 mm	Locking Ramp	Through Hole Right Angle	Board to Cable/Wire	10.49 mm	0.413 in	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	Natural	Solder	All	Shrouded - 4 Wall	0.079 in	2 mm	UL94 V-0	Copper Alloy	16	Board Guide	Tin	2	250 VDC	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

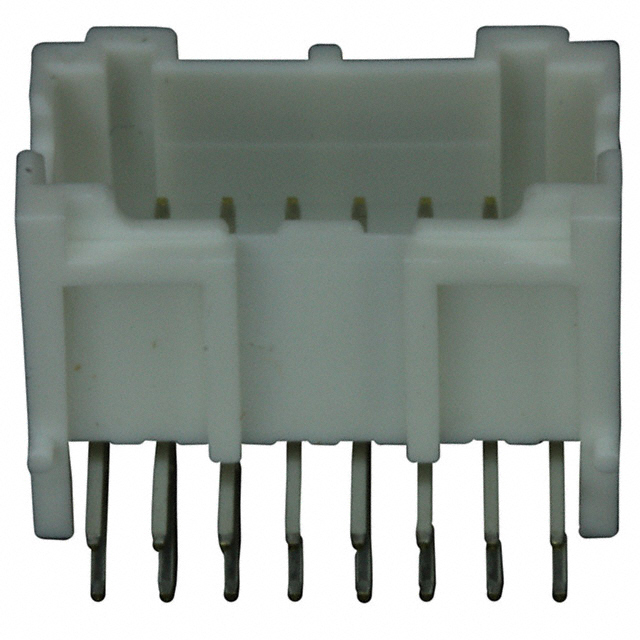

Connector Header Through Hole, Right Angle 16 position 0.079" (2.00mm)
