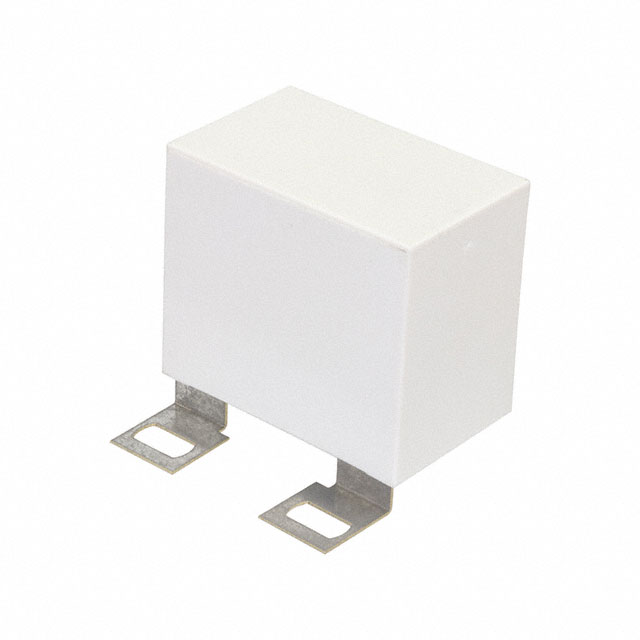

C4BSMBX4500ZBNJ

Active

KEMET

CAP FILM 5UF 5% 850VDC SCREW

Search across all available documentation for this part.

Active

KEMET

CAP FILM 5UF 5% 850VDC SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	C4BSMBX4500ZBNJ

Applications	DC Link, DC Filtering, Snubber
Capacitance	5 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	1.9 mOhms
Lead Spacing	37 mm
Lead Spacing	1.457 in
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Rectangular Box
Size / Dimension [x]	2.264 in
Size / Dimension [x]	57.5 mm
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.378 "
Termination	Screw Terminals
Tolerance	5 %
Voltage Rating - AC	550 V
Voltage Rating - DC	850 V

Part	Package / Case	Mounting Type	Voltage Rating - DC	Applications	Dielectric Material	Capacitance	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Lead Spacing	Lead Spacing	Voltage Rating - AC	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
KEMET C4BSMBX4200ZA0J	Rectangular Box	Chassis Mount	850 V	DC Filtering DC Link Snubber	Metallized Polypropylene (PP)	2 µF	Screw Terminals	85 °C	-40 °C	5 %
KEMET C4BSMBX4500ZBNJ	Rectangular Box	Chassis Mount	850 V	DC Filtering DC Link Snubber	Metallized Polypropylene (PP)	5 µF	Screw Terminals	85 °C	-40 °C	5 %	37 mm	1.457 in	550 V	1.9 mOhms	35 mm	1.378 "	2.264 in	57.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 µF Film Capacitor 550V 850V Polypropylene (PP), Metallized Rectangular Box
