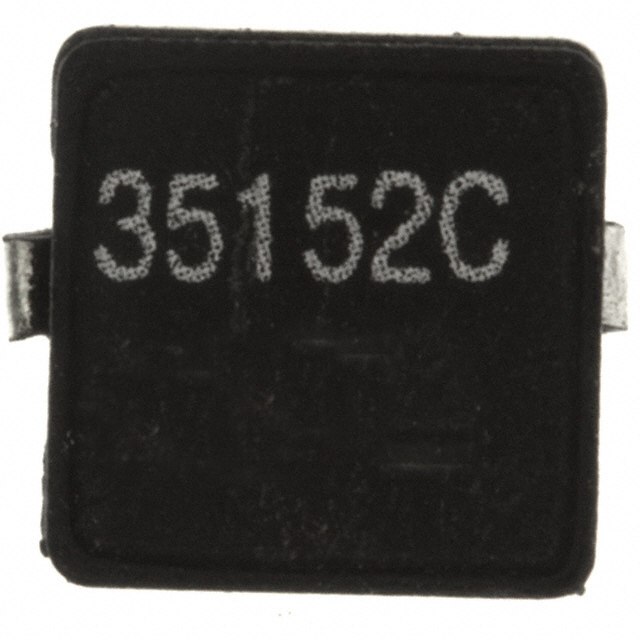

35152C
ActiveMurata Power Solutions Inc.
POWER INDUCTORS - SMD 1.5UH 6.5A FLAT COIL SM POWER
Deep-Dive with AI
Search across all available documentation for this part.
35152C
ActiveMurata Power Solutions Inc.
POWER INDUCTORS - SMD 1.5UH 6.5A FLAT COIL SM POWER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 35152C | 35 Series |
|---|---|---|
| Current Rating (Amps) | - | 6.5 - 15.5 A |
| DC Resistance (DCR) | - | 19 mOhm |
| DC Resistance (DCR) | - | 4.5 - 15 mOhm |
| Height - Seated (Max) | - | 3.2 mm |
| Height - Seated (Max) | - | 0.126 in |
| Inductance | - | 1.1 - 800 nH |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | Nonstandard |
| Shielding | - | Unshielded |
| Size / Dimension | - | 6.8 mm |
| Size / Dimension | - | 0.268 in |
| Size / Dimension | - | 6.8 mm |
| Size / Dimension | - | 0.268 in |
| Tolerance | - | 25 % |
| Type | - | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
35 Series
FIXED IND 500NH 11.5A 7 MOHM SMD
| Part | Mounting Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Shielding | Inductance | Current Rating (Amps) | Type | Tolerance | DC Resistance (DCR) | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 35501C | Surface Mount | Nonstandard | 125 °C | -40 °C | 6.8 mm | 0.268 in | 6.8 mm | 0.268 in | 3.2 mm | 0.126 in | Unshielded | 500 nH | 11.5 A | Wirewound | 25 % | ||
Murata Power Solutions Inc. 35152C | Surface Mount | Nonstandard | 125 °C | -40 °C | 6.8 mm | 0.268 in | 6.8 mm | 0.268 in | 3.2 mm | 0.126 in | Unshielded | 1.5 µH | 6.5 A | Wirewound | 25 % | 19 mOhm | |
Murata Power Solutions Inc. 35112C | Surface Mount | Nonstandard | 125 °C | -40 °C | 6.8 mm | 0.268 in | 6.8 mm | 0.268 in | 3.2 mm | 0.126 in | Unshielded | 1.1 µH | 8 A | Wirewound | 25 % | 15 mOhm | |
Murata Power Solutions Inc. 35251C | Surface Mount | Nonstandard | 125 °C | -40 °C | 6.8 mm | 0.268 in | 6.8 mm | 0.268 in | 3.2 mm | 0.126 in | Unshielded | 250 nH | 15.5 A | Wirewound | 25 % | 4.5 mOhm | |
Murata Power Solutions Inc. 35251C | |||||||||||||||||
Murata Power Solutions Inc. 35801C | Surface Mount | Nonstandard | 125 °C | -40 °C | 6.8 mm | 0.268 in | 6.8 mm | 0.268 in | 3.2 mm | 0.126 in | Unshielded | 800 nH | 9.5 A | Wirewound | 25 % | 10 mOhm | |
Murata Power Solutions Inc. 35152C |
Description
General part information
35 Series
1.5 µH Unshielded Wirewound Inductor 6.5 A 19mOhm Max Nonstandard
