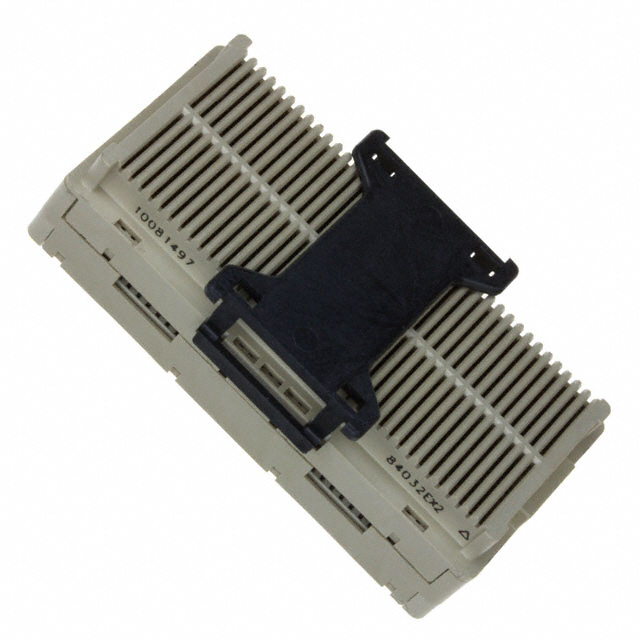

10081497-001LF

Active

Amphenol ICC (FCI)

CONN DIFF ARRAY RCPT 296POS SMD

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN DIFF ARRAY RCPT 296POS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	10081497-001LF

Connector Type	Differential Pair Array, Female
Contact Finish	GXT™, Gold or Gold
Height Above Board	0.414 in
Height Above Board	10.51 mm
Mated Stacking Heights	31 mm, 26 mm, 24 mm, 36 mm, 21 mm, 23 mm
Mounting Type	Surface Mount
Number of Positions [custom]	148
Number of Positions [custom]	296
Number of Rows [custom]	18
Pitch [x]	1.3 mm
Pitch [x]	0.051 in

Part	Number of Rows [custom]	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions [custom]	Number of Positions [custom]	Mated Stacking Heights	Contact Finish	Connector Type	Height Above Board	Height Above Board
Amphenol ICC (FCI) 10081497-001LF	18	Surface Mount	1.3 mm	0.051 in	148	296	21 mm 23 mm 24 mm 26 mm 31 mm 36 mm	Gold or Gold GXT™	Differential Pair Array Female	0.414 in	10.51 mm
Amphenol ICC (FCI) 10081497-001	18	Surface Mount	1.3 mm	0.051 in	148	296	21 mm 23 mm 24 mm 26 mm 31 mm 36 mm	Gold or Gold GXT™	Differential Pair Array Female	0.414 in	10.51 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

296 Signal (148 Pair) Position Connector Differential Pair Array, Female Surface Mount Gold or Gold, GXT™
