HJ2-T-AC12V

Obsolete

Panasonic Electric Works

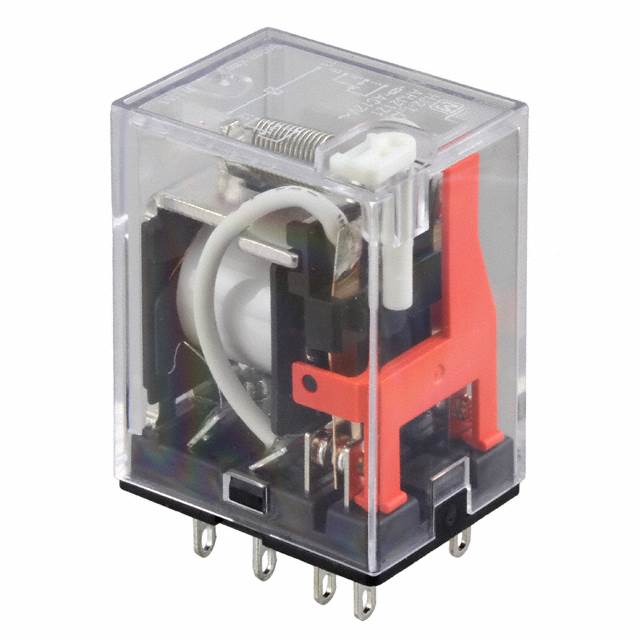

RELAY GEN PURPOSE DPDT 10A 12V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 10A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Rating (Current)	Load - Max Switching	Coil Voltage	Mounting Type	Contact Form	Contact Material	Termination Style	Switching Voltage	Coil Current	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Approval Agency	Relay Type	Must Operate Voltage	Coil Resistance	Release Time	Coil Type	Features
Panasonic Electric Works HJ2-T-AC48V	10 A	1250 W 2500 VA	48 VAC/DC	Socketable	DPDT (2 Form C)	Silver (Ag)	Plug In	125 VDC 250 VAC	25.9 mA	20 ms	-40 °C	70 °C	14.4 VAC	cURus TUV	General Purpose	38.4 VAC	1853 Ohms	20 ms	Non Latching	Test Button
Panasonic Electric Works HJ2-T-AC120V	10 A	1250 W 2500 VA	120 VAC	Socketable	DPDT (2 Form C)	Silver (Ag)	Plug In	125 VDC 250 VAC	9.1 mA	20 ms	-40 °C	70 °C	36 VAC	cURus TUV	General Purpose	96 VAC	13.19 kOhms	20 ms	Non Latching	Test Button
Panasonic Electric Works HJ2-T-AC220/240V	10 A	1250 W 2500 VA	240 VAC	Socketable	DPDT (2 Form C)	Silver (Ag)	Plug In	125 VDC 250 VAC		20 ms	-40 °C	70 °C	72 VAC/DC	cURus TUV	General Purpose	192 VAC	42.86 kOhms	20 ms	Non Latching	Test Button
Panasonic Electric Works HJ2-T-AC24V	10 A	1250 W 2500 VA	24 VAC	Socketable	DPDT (2 Form C)	Silver (Ag)	Plug In	125 VDC 250 VAC	45.6 mA	20 ms	-40 °C	70 °C	7.2 VAC	cURus TUV	General Purpose	19.2 VAC	526.3 Ohms	20 ms	Non Latching	Test Button
Panasonic Electric Works HJ2-T-AC12V	10 A	1250 W 2500 VA	12 VAC/DC	Socketable	DPDT (2 Form C)	Silver (Ag)	Plug In	125 VDC 250 VAC	85.4 mA	20 ms	-40 °C	70 °C	3.6 VAC	cURus TUV	General Purpose	9.6 VAC/DC	140.5 Ohms	20 ms	Non Latching	Test Button
