4-794626-0
ActiveTE Connectivity AMP Connectors

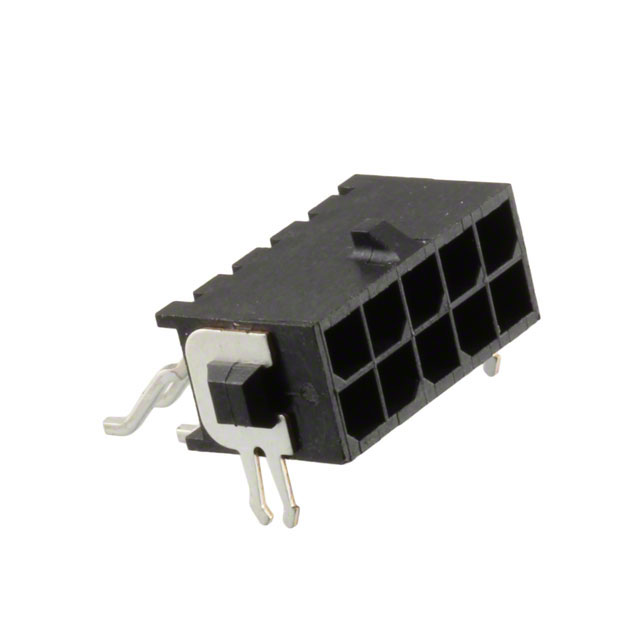

CONN HEADER SMD R/A 10POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4-794626-0
ActiveTE Connectivity AMP Connectors
CONN HEADER SMD R/A 10POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4-794626-0 | 794626 Series |
|---|---|---|
| Applications | General Purpose | General Purpose, Industrial, Lighting |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Current Rating (Amps) | - | 5 A |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | Black | Black |
| Insulation Height | 7.37 mm | 7.37 mm |
| Insulation Height | 0.29 in | 0.29 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Number of Positions | 10 | 2 - 24 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
794626 Series
CONN HEADER SMD R/A 16POS 3MM
| Part | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Shrouding | Insulation Height | Insulation Height | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Fastening Type | Contact Finish - Mating | Insulation Material | Contact Shape | Material Flammability Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Applications | Style | Connector Type | Contact Type | Insulation Color | Contact Finish - Post | Number of Positions | Number of Positions Loaded | Termination | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Number of Positions | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-794626-6 | 3 mm | 0.118 in | 0.118 in | 3 mm | Shrouded - 4 Wall | 7.37 mm | 0.29 in | 2.54 µm | 100 µin | 250 VDC | Locking Ramp | Gold | Nylon, Polyamide (PA) | Square | UL94 V-0 | Brass | -40 °C | 105 ░C | Surface Mount, Right Angle | General Purpose | Board to Cable/Wire | Header | Male Pin | Black | Tin | 16 | All | Solder | Varies by Wire Gauge | 30 Áin | 0.76 Ám | 2 | ||
TE Connectivity AMP Connectors 4-794626-2 | 3 mm | 0.118 in | 0.118 in | 3 mm | Shrouded - 4 Wall | 7.37 mm | 0.29 in | 2.54 µm | 100 µin | 250 VAC | Locking Ramp | Gold | Nylon, Polyamide (PA) | Square | UL94 V-0 | Brass | -40 °C | 105 ░C | Surface Mount, Right Angle | General Purpose, Industrial, Lighting | Board to Cable/Wire | Header | Male Pin | Black | Tin | All | Solder | 30 Áin | 0.76 Ám | 2 | 12 | 5 A | ||
TE Connectivity AMP Connectors 3-794626-8 | 3 mm | 0.118 in | 0.118 in | 3 mm | Shrouded - 4 Wall | 7.37 mm | 0.29 in | 2.54 µm | 100 µin | 250 VDC | Locking Ramp | Gold | Nylon, Polyamide (PA) | Square | UL94 V-0 | Brass | -40 °C | 105 ░C | Surface Mount, Right Angle | General Purpose | Board to Cable/Wire | Header | Male Pin | Black | Tin | All | Solder | Varies by Wire Gauge | 30 Áin | 0.76 Ám | 2 | 8 | ||
TE Connectivity AMP Connectors 794626-4 | 3 mm | 0.118 in | 0.118 in | 3 mm | Shrouded - 4 Wall | 7.37 mm | 0.29 in | 2.54 µm | 100 µin | 250 VDC | Locking Ramp | Gold | Nylon, Polyamide (PA) | Square | UL94 V-0 | Brass | -40 °C | 105 ░C | Surface Mount, Right Angle | General Purpose | Board to Cable/Wire | Header | Male Pin | Black | Tin-Lead | All | Solder | Varies by Wire Gauge | 30 Áin | 0.76 Ám | 2 | 4 | ||
TE Connectivity AMP Connectors 5-794626-4 | 3 mm | 0.118 in | 0.118 in | 3 mm | Shrouded - 4 Wall | 7.37 mm | 0.29 in | 2.54 µm | 100 µin | 250 VDC | Locking Ramp | Gold | Nylon, Polyamide (PA) | Square | UL94 V-0 | Brass | -40 °C | 105 ░C | Surface Mount, Right Angle | General Purpose | Board to Cable/Wire | Header | Male Pin | Black | Tin | All | Solder | Varies by Wire Gauge | 30 Áin | 0.76 Ám | 2 | 24 | ||
TE Connectivity AMP Connectors 794626-2 | 3 mm | 0.118 in | Shrouded - 4 Wall | 7.37 mm | 0.29 in | 2.54 µm | 100 µin | 250 VDC | Locking Ramp | Gold | Nylon, Polyamide (PA) | Square | UL94 V-0 | Brass | -40 °C | 105 ░C | Surface Mount, Right Angle | General Purpose | Board to Cable/Wire | Header | Male Pin | Black | Tin-Lead | All | Solder | Varies by Wire Gauge | 30 Áin | 0.76 Ám | 2 | 2 | ||||
TE Connectivity AMP Connectors 4-794626-4 | 3 mm | 0.118 in | 0.118 in | 3 mm | Shrouded - 4 Wall | 7.37 mm | 0.29 in | 2.54 µm | 100 µin | 250 VDC | Locking Ramp | Gold | Nylon, Polyamide (PA) | Square | UL94 V-0 | Brass | -40 °C | 105 ░C | Surface Mount, Right Angle | General Purpose | Board to Cable/Wire | Header | Male Pin | Black | Tin | All | Solder | Varies by Wire Gauge | 30 Áin | 0.76 Ám | 2 | 14 | ||
TE Connectivity AMP Connectors 4-794626-8 | 3 mm | 0.118 in | 0.118 in | 3 mm | Shrouded - 4 Wall | 7.37 mm | 0.29 in | 2.54 µm | 100 µin | 250 VDC | Locking Ramp | Gold | Nylon, Polyamide (PA) | Square | UL94 V-0 | Brass | -40 °C | 105 ░C | Surface Mount, Right Angle | General Purpose | Board to Cable/Wire | Header | Male Pin | Black | Tin | All | Solder | Varies by Wire Gauge | 30 Áin | 0.76 Ám | 2 | 18 | ||
TE Connectivity AMP Connectors 4-794626-0 | 3 mm | 0.118 in | 0.118 in | 3 mm | Shrouded - 4 Wall | 7.37 mm | 0.29 in | 2.54 µm | 100 µin | 250 VDC | Locking Ramp | Gold | Nylon, Polyamide (PA) | Square | UL94 V-0 | Brass | -40 °C | 105 ░C | Surface Mount, Right Angle | General Purpose | Board to Cable/Wire | Header | Male Pin | Black | Tin | All | Solder | Varies by Wire Gauge | 30 Áin | 0.76 Ám | 2 | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.44 | |
| 10 | $ 3.01 | |||
| Digi-Reel® | 1 | $ 3.44 | ||
| 10 | $ 3.01 | |||
| Tape & Reel (TR) | 150 | $ 2.78 | ||
Description
General part information
794626 Series
Connector Header Surface Mount, Right Angle 10 position 0.118" (3.00mm)
