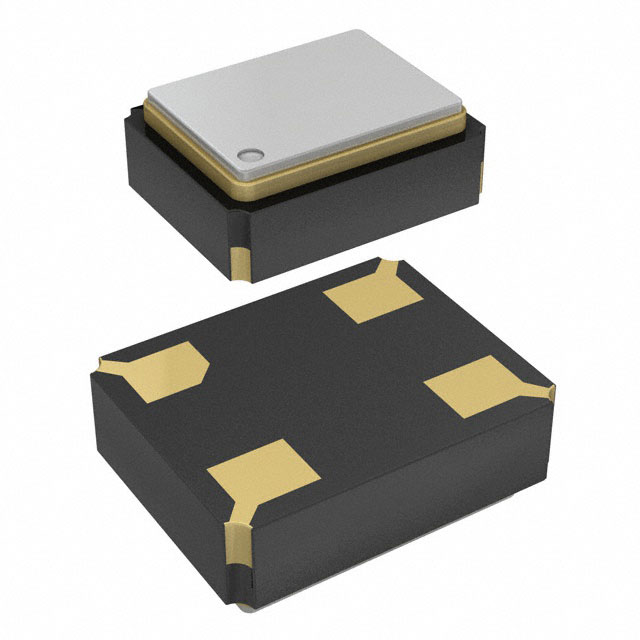

FM3900001Z

Active

Diodes Inc

XTAL OSC XO 39.0625MHZ LVCMOS

Search across all available documentation for this part.

Active

Diodes Inc

XTAL OSC XO 39.0625MHZ LVCMOS

Technical Specifications

Parameters and characteristics for this part

Specification	FM3900001Z

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	10 ÁA
Current - Supply (Max) [Max]	5 mA
Frequency	39.0625 MHz
Frequency Stability	50 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	0.85 mm
Height - Seated (Max) [Max] [z]	0.033 "
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVCMOS
Package / Case	4-SMD, No Lead
Size / Dimension [x]	2.05 mm
Size / Dimension [x]	0.081 in
Size / Dimension [y]	1.6 mm
Size / Dimension [y]	0.063 in
Type	XO (Standard)
Voltage - Supply	3.3 V

Part	Voltage - Supply	Current - Supply (Max) [Max]	Base Resonator	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency Stability	Frequency	Current - Supply (Disable) (Max) [Max]	Output	Mounting Type	Package / Case	Type	Function
Diodes Inc FM3900001Z	3.3 V	5 mA	Crystal	2.05 mm	1.6 mm	0.081 in	0.063 in	85 °C	-40 °C	0.85 mm	0.033 "	50 ppm	39.0625 MHz	10 ÁA	LVCMOS	Surface Mount	4-SMD No Lead	XO (Standard)	Enable/Disable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.71
	Digi-Reel®	1	$ 1.71
	Tape & Reel (TR)	3000	$ 1.03

General part information

39.0625 MHz XO (Standard) LVCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
