T4052118004-001
ActiveTE Connectivity AMP Connectors

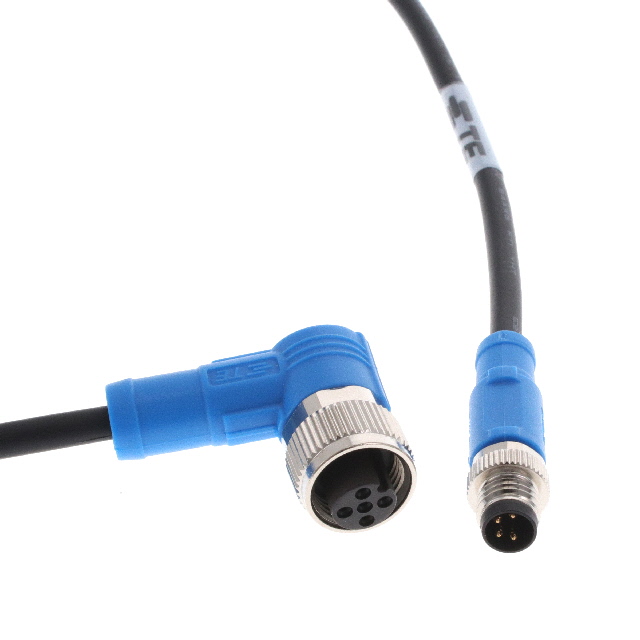

CBL 4POS MALE TO FMALE 1.64'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4052118004-001 | T40521 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 | 3 - 4 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M8 | M8 |
| 1st Connector Type | Receptacle | Receptacle |
| 2nd Connector Gender | Female Sockets | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 | 5 |
| 2nd Connector Number of Positions Loaded | 4 positions | 3 - 4 |
| 2nd Connector Shell Size - Insert | M12 | M12 |
| 2nd Connector Type | Plug, Right Angle | Plug, Right Angle, Plug |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC), Polyurethane (PUR) |
| Cable Type | Round | Round |
| Color | Black | Black, Gray |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length [x] | 1.64 ft | 1.64 ft |
| Length [x] | 500 mm | 500 mm |
| Shielding | Unshielded | Unshielded |
| Usage | Industrial Environments | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 14.83 | |
| 10 | $ 14.53 | |||
| 25 | $ 14.14 | |||
| 50 | $ 13.44 | |||
| 100 | $ 12.13 | |||
| 250 | $ 12.05 | |||
| 500 | $ 10.51 | |||
T40521 Series
CBL 3POS RCPT TO PLUG RA 1.64'
| Part | Color | 2nd Connector Number of Positions | Length [x] | Length [x] | 2nd Connector Shell Size - Insert | Cable Type | 1st Connector Shell Size - Insert | 2nd Connector Gender | 2nd Connector Number of Positions Loaded | 1st Connector Number of Positions | Ingress Protection | 2nd Connector Mounting Type | Shielding | 1st Connector Mounting Type | 1st Connector Gender | Assembly Configuration | 2nd Connector Type | Cable Material | Usage | 1st Connector Orientation | 1st Connector Type | 1st Connector Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4052118003-001 | Black | 5 | 1.64 ft | 500 mm | M12 | Round | M8 | Female Sockets | 3 | 3 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Unshielded | Free Hanging (In-Line) | Male Pins | Standard | Plug, Right Angle | Polyvinyl Chloride (PVC) | Industrial Environments | A | Receptacle | All |
TE Connectivity AMP Connectors T4052118004-001 | Black | 5 | 1.64 ft | 500 mm | M12 | Round | M8 | Female Sockets | 4 positions | 4 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Unshielded | Free Hanging (In-Line) | Male Pins | Standard | Plug, Right Angle | Polyvinyl Chloride (PVC) | Industrial Environments | A | Receptacle | All |
TE Connectivity AMP Connectors T4052117004-001 | Black | 5 | 1.64 ft | 500 mm | M12 | Round | M8 | Female Sockets | 4 positions | 4 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Unshielded | Free Hanging (In-Line) | Male Pins | Standard | Plug | Polyvinyl Chloride (PVC) | Industrial Environments | A | Receptacle | All |
TE Connectivity AMP Connectors T4052118004-005 | Black | 5 | M12 | Round | M8 | Female Sockets | 4 positions | 4 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Unshielded | Free Hanging (In-Line) | Male Pins | Standard | Plug, Right Angle | Polyvinyl Chloride (PVC) | Industrial Environments | A | Receptacle | All | ||
TE Connectivity AMP Connectors T4052127003-005 | Gray | 5 | M12 | Round | M8 | Female Sockets | 3 | 3 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Unshielded | Free Hanging (In-Line) | Male Pins | Standard | Plug | Polyurethane (PUR) | Industrial Environments | A | Receptacle | All | ||
TE Connectivity AMP Connectors T4052127003-001 | Gray | 5 | 1.64 ft | 500 mm | M12 | Round | M8 | Female Sockets | 3 | 3 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Unshielded | Free Hanging (In-Line) | Male Pins | Standard | Plug | Polyurethane (PUR) | Industrial Environments | A | Receptacle | All |
Description
General part information
T40521 Series
Cable Assembly 1.64' (500.00mm)
