Technical Specifications
Parameters and characteristics for this part
| Specification | 6500FH 010U1000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Low Smoke Poly-Vinyl Chloride (LSPVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 3.3 mm |
| Jacket (Insulation) Diameter [diameter] | 0.13 in |
| Jacket (Insulation) Material | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Ratings | UL Style CMP |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Sound, Security, Alarm |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
6500FH Series

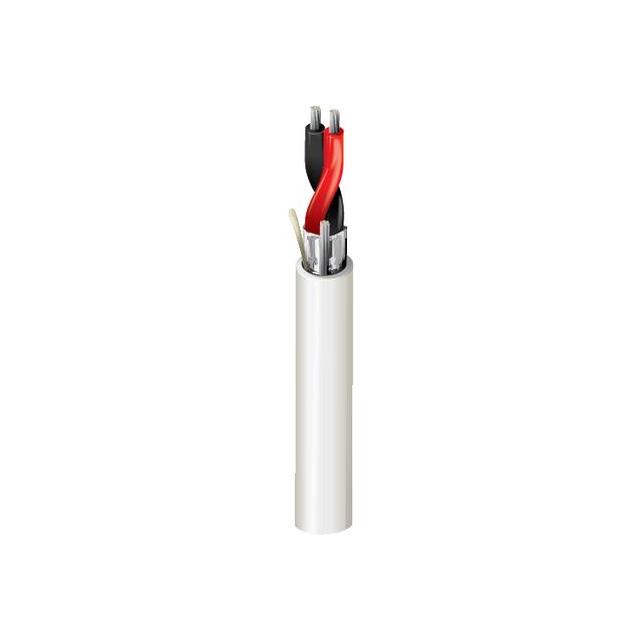

2 Conductor Multi-Conductor Cable Black 22 AWG Foil 1000.0' (304.8m)
