Q-2V01I0003006I

Active

Amphenol Custom Cable

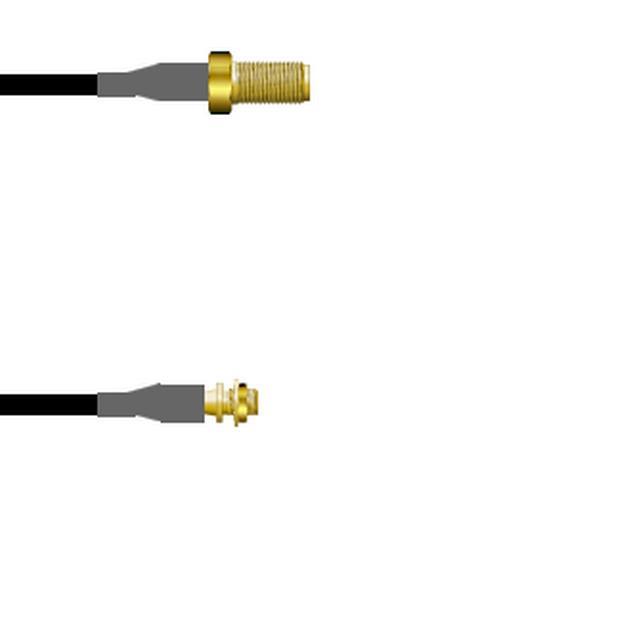

CBL ASSY SMA-MMCX JACK-JACK 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2V01I0003006I

Active

Amphenol Custom Cable

CBL ASSY SMA-MMCX JACK-JACK 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2V01I0003006I

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	MMCX Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	SMA to MMCX

Q-2V01I0 Series

Part	Color	Cable Type	Features	Frequency - Max [Max]	1st Contact Gender	Connector Impedance	2nd Connector	Length	Length	Length	Overall Impedance	2nd Connector Mounting Type	Style	1st Connector	2nd Contact Gender	2nd Connector Mounting Feature	1st Connector Mounting Type	Cable Impedance	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2V01I0003060I	Black	RG-174	Shielded	1 GHz	Female	50 Ohms	MMCX Jack	5 ft	1.5 m	5 '	50 Ohms	Panel Mount	SMA to MMCX	SMA Jack	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-2V01I0003001M	Black	RG-174	Shielded	1 GHz	Female	50 Ohms	MMCX Jack	3.3 ft	1 m	39.4 in	50 Ohms	Panel Mount	SMA to MMCX	SMA Jack	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-2V01I0003.25M	Black	RG-174	Shielded	1 GHz	Female	50 Ohms	MMCX Jack				50 Ohms	Panel Mount	SMA to MMCX	SMA Jack	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	9.843 "	250 mm
Amphenol Custom Cable Q-2V01I0003108I	Black	RG-174	Shielded	1 GHz	Female	50 Ohms	MMCX Jack	9 ft	2.7 m	108 in	50 Ohms	Panel Mount	SMA to MMCX	SMA Jack	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-2V01I0003018I	Black	RG-174	Shielded	1 GHz	Female	50 Ohms	MMCX Jack				50 Ohms	Panel Mount	SMA to MMCX	SMA Jack	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2V01I0003036I	Black	RG-174	Shielded	1 GHz	Female	50 Ohms	MMCX Jack		91.44 cm	36 in	50 Ohms	Panel Mount	SMA to MMCX	SMA Jack	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-2V01I0003.75M	Black	RG-174	Shielded	1 GHz	Female	50 Ohms	MMCX Jack		750 mm	29.53 "	50 Ohms	Panel Mount	SMA to MMCX	SMA Jack	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-2V01I0003002M	Black	RG-174	Shielded	1 GHz	Female	50 Ohms	MMCX Jack	6.6 ft	2 m	78.7 in	50 Ohms	Panel Mount	SMA to MMCX	SMA Jack	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-2V01I0003009I	Black	RG-174	Shielded	1 GHz	Female	50 Ohms	MMCX Jack		228.6 mm	9 "	50 Ohms	Panel Mount	SMA to MMCX	SMA Jack	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-2V01I0003006I	Black	RG-174	Shielded	1 GHz	Female	50 Ohms	MMCX Jack		152.4 mm	6 in	50 Ohms	Panel Mount	SMA to MMCX	SMA Jack	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 117.31
		25	$ 115.03
		50	$ 112.74
		100	$ 110.46
		250	$ 108.17

Description

General part information

Q-2V01I0 Series

Cable Assembly Coaxial SMA to MMCX RG-174 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
