Technical Specifications
Parameters and characteristics for this part
| Specification | DIW6 7321000 |
|---|---|
| Cable Type | Multi-Pair, Cat3 |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Rip Cord |
| Jacket (Insulation) Diameter [diameter] | 5.16 mm |
| Jacket (Insulation) Diameter [diameter] | 0.203 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket Color | Olive |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 12 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Ratings | UL Style CMR |
| Usage | Network |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 0.70 | |
Description
General part information
DIW6 Series

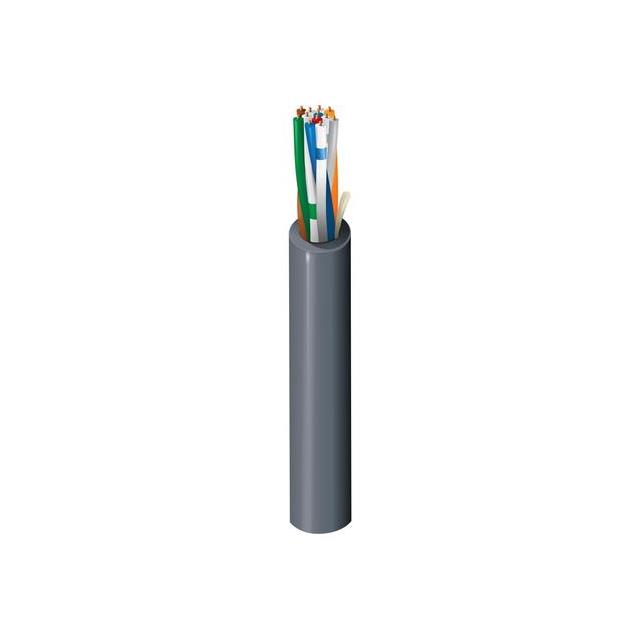

12 (6 Pair) Conductor Multi-Pair, Cat3 Cable Olive 24 AWG 1000.0' (304.8m)
