8H-05AMMM-SR7A01

Active

Amphenol LTW

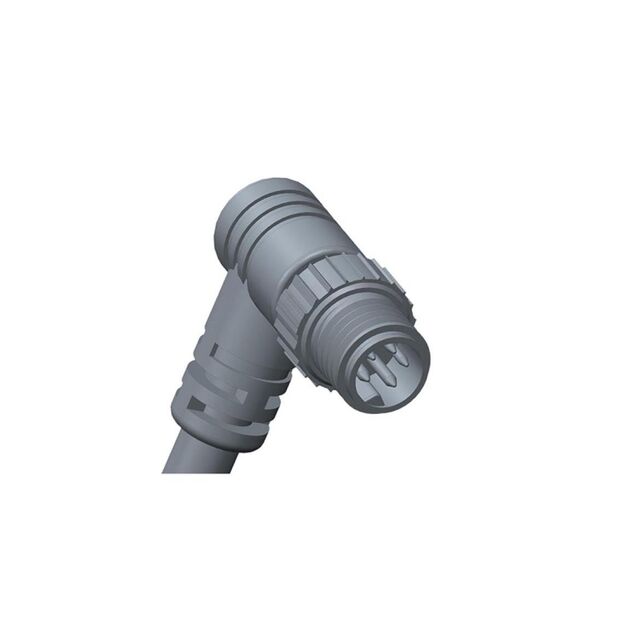

CBL 5POS PLUG RA TO WIRE 3.28'

Deep-Dive with AI

Search across all available documentation for this part.

8H-05AMMM-SR7A01

Active

Amphenol LTW

CBL 5POS PLUG RA TO WIRE 3.28'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8H-05AMMM-SR7A01

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions [custom]	3
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M8
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

8H-05AMMM Series

Part	1st Connector Gender	Color	2nd Connector Type	1st Connector Type	Cable Type	1st Connector Number of Positions Loaded	Usage	Assembly Configuration	1st Connector Number of Positions [custom]	1st Connector Number of Positions	1st Connector Orientation [custom]	1st Connector Shell Size - Insert	Cable Material	Ingress Protection	1st Connector Mounting Type	Length [x]	Length [x]	Shielding
Amphenol LTW 8H-05AMMM-SR7A03	Male Pins	Black	Wire Leads	Plug Right Angle	Round	All	Industrial Environments	Standard	3	5	Keyed	M8	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	9.84 ft	3 m	Unshielded
Amphenol LTW 8H-05AMMM-SL7A01	Male Pins	Black	Wire Leads	Plug	Round	All	Industrial Environments	Standard	3	5	Keyed	M8	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	3.28 ft	1 m	Unshielded
Amphenol LTW 8H-05AMMM-SR7A10	Male Pins	Black	Wire Leads	Plug Right Angle	Round	All	Industrial Environments	Standard	3	5	Keyed	M8	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)			Unshielded
Amphenol LTW 8H-05AMMM-SR7A02	Male Pins	Black	Wire Leads	Plug Right Angle	Round	All	Industrial Environments	Standard	3	5	Keyed	M8	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	6.56 ft	2 m	Unshielded
Amphenol LTW 8H-05AMMM-SL7A02	Male Pins	Black	Wire Leads	Plug	Round	All	Industrial Environments	Standard	3	5	Keyed	M8	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	6.56 ft	2 m	Unshielded
Amphenol LTW 8H-05AMMM-SR7A01	Male Pins	Black	Wire Leads	Plug Right Angle	Round	All	Industrial Environments	Standard	3	5	Keyed	M8	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	3.28 ft	1 m	Unshielded
Amphenol LTW 8H-05AMMM-SL7A10	Male Pins	Black	Wire Leads	Plug	Round	All	Industrial Environments	Standard	3	5	Keyed	M8	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)			Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.72
		10	$ 9.00
		25	$ 8.13
		50	$ 7.54
		100	$ 7.01
		250	$ 6.38
		500	$ 5.96
		1000	$ 5.58

Description

General part information

8H-05AMMM Series

Circular Cable Assembly Unshielded 3.28' (1.00m)

Documents

Technical documentation and resources

No documents available
