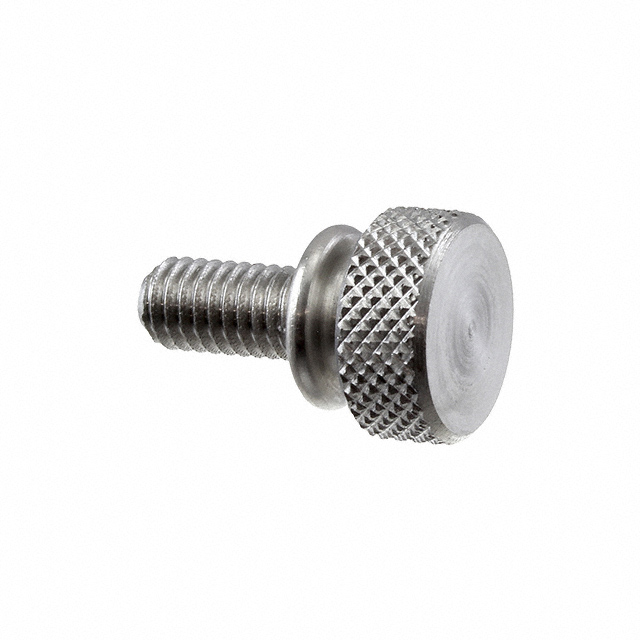

7109-SS
ActiveRAF Electronic Hardware
THUMB SCREW KNOB - #10-32
Deep-Dive with AI
Search across all available documentation for this part.
7109-SS
ActiveRAF Electronic Hardware
THUMB SCREW KNOB - #10-32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7109-SS |
|---|---|
| Head Diameter [diameter] | 0.4375 " |
| Head Diameter [diameter] | 11.13 mm |
| Head Diameter [diameter] | 0.438 " |
| Head Height [x] | 3 in |
| Head Height [x] | 4.78 mm |
| Head Height [x] | 0.188 in |
| Length - Below Head | 12.7 mm |
| Length - Below Head | 1/2 |
| Length - Below Head | 0.5 in |
| Length - Overall | 17.48 mm |
| Length - Overall | 0.688 in |
| Length - Overall | 0.6875 in |
| Material | Stainless Steel |
| Screw Head Type | Knob |
| Thread Size | #10-32 |
| Type | Thumb Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.26 | |
| 5 | $ 1.92 | |||
| 10 | $ 1.79 | |||
| 25 | $ 1.65 | |||
| 50 | $ 1.56 | |||
| 100 | $ 1.47 | |||
| 250 | $ 1.38 | |||
| 500 | $ 1.31 | |||
| 1000 | $ 1.25 | |||
Description
General part information
7109 Series
#10-32 Knob Thumb Screw Drive Stainless Steel
