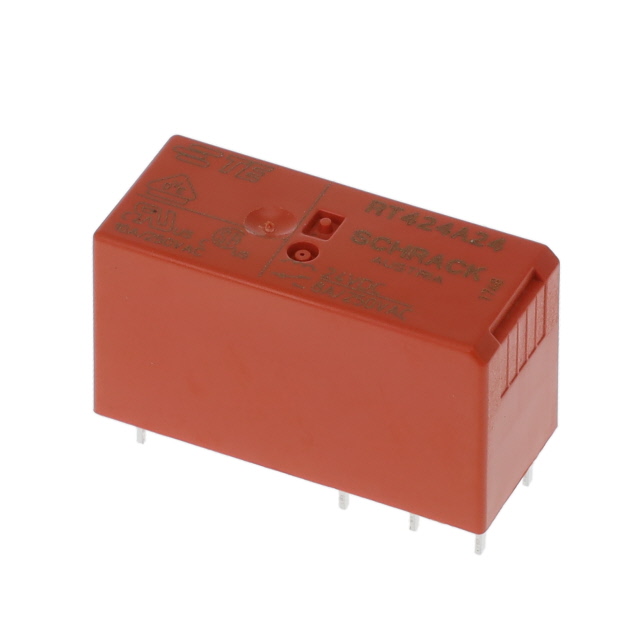

RT424A24

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 8A 24V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 8A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Switching Voltage [Max]	Coil Voltage	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Load - Max Switching	Relay Type	Operate Time	Contact Material	Seal Rating	Approval Agency	Coil Insulation	Coil Current	Contact Form	Must Operate Voltage	Contact Rating (Current)	Termination Style	Coil Type	Coil Resistance
TE Connectivity Potter & Brumfield Relays RT424A05	400 VAC	5 VDC	Through Hole	-10 °C	85 °C	5 ms	3200 VA	General Purpose	10 ms	Silver Nickel (AgNi)	Sealed - Flux Protection	CQC CSA cURus VDE	Class F	14.2 mA	DPDT (2 Form C)	3.5 VDC	8 A	PC Pin	Latching Single Coil	62 Ohms
TE Connectivity Potter & Brumfield Relays RT424A12	400 VAC	12 VDC	Through Hole	-10 °C	85 °C	5 ms	3200 VA	General Purpose	10 ms	Silver Nickel (AgNi)	Sealed - Flux Protection	CQC CSA cURus VDE	Class F	14.2 mA	DPDT (2 Form C)	8.4 VDC	8 A	PC Pin	Latching Single Coil	360 Ohms
TE Connectivity Potter & Brumfield Relays RT424A24	400 VAC	24 VDC	Through Hole	-10 °C	85 °C	5 ms	3200 VA	General Purpose	10 ms	Silver Nickel (AgNi)	Sealed - Flux Protection	CQC CSA cURus VDE	Class F	14.2 mA	DPDT (2 Form C)	16.8 VDC	8 A	PC Pin	Latching Single Coil	1440 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
