0489-0-15-01-11-02-04-0
ActiveMill-Max Manufacturing Corp.

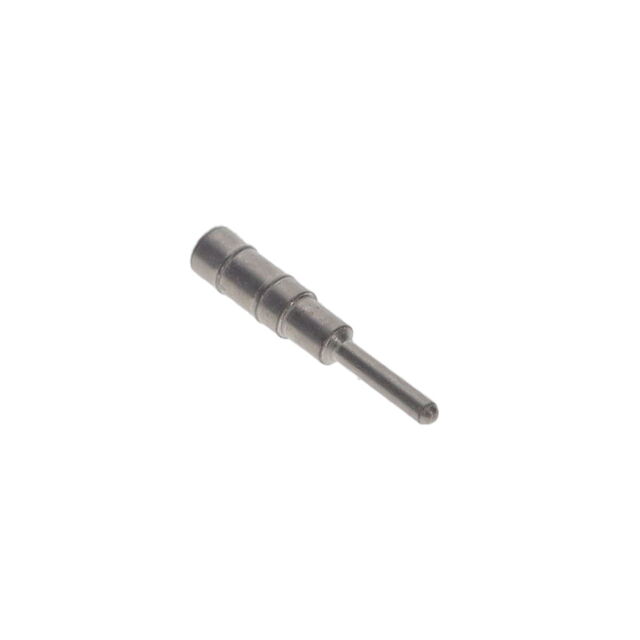

PIN RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
0489-0-15-01-11-02-04-0
ActiveMill-Max Manufacturing Corp.
PIN RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0489-0-15-01-11-02-04-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.51 mm |
| Accepts Pin Diameter [Max] [diameter] | 0.02 " |
| Accepts Pin Diameter [Min] [diameter] | 0.015 " |
| Accepts Pin Diameter [Min] [diameter] | 0.38 mm |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Contact Material | Beryllium Copper |
| Length - Overall [x] | 6 mm |
| Length - Overall [x] | 0.236 in |
| Mounting Hole Diameter [diameter] | 0.041 in |
| Mounting Hole Diameter [diameter] | 1.04 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.79 mm |
| Pin Hole Diameter [diameter] | 0.031 in |
| Socket Depth | 3.05 mm |
| Socket Depth | 0.12 in |
| Tail Diameter [diameter] | 0.46 mm |
| Tail Diameter [diameter] | 0.018 in |
| Tail Type | Standard Tail |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.15 | |
| 10 | $ 0.97 | |||
| 100 | $ 0.87 | |||
| 1000 | $ 0.63 | |||
| 5000 | $ 0.55 | |||
| 10000 | $ 0.53 | |||
Description
General part information
0489-0 Series
Pin Receptacle Connector 0.015" ~ 0.020" (0.38mm ~ 0.51mm) Standard Tail Press-Fit
