R128474857

Active

Radiall USA, Inc.

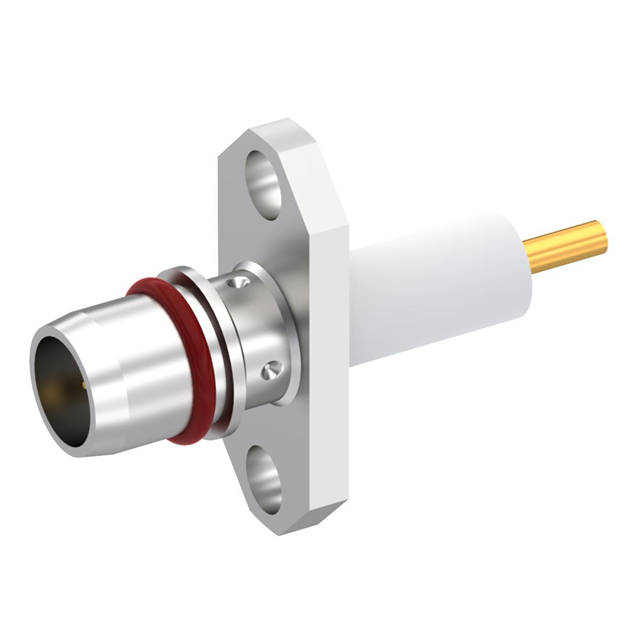

BMA / 2 HOLE FLANGE MALE RECEPTA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BMA / 2 HOLE FLANGE MALE RECEPTA

Technical Specifications

Parameters and characteristics for this part

Specification	R128474857

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	350 V

Part	Mounting Type	Fastening Type	Connector Style	Number of Ports	Voltage Rating	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Features	Shield Termination	Housing Color	Connector Type	Dielectric Material	Mounting Feature	Body Finish	Frequency - Max [Max]	Body Material	Center Contact Plating	Impedance	Contact Termination	Mating Cycles	Ingress Protection
Radiall USA, Inc. R128474847	Panel Mount Through Hole	Snap-On	BMA	1	500 V	Brass	125 °C	-65 ░C	Extended Insulation	Solder	Silver	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Flange	White Bronze	18 GHz	Brass	Gold	50 Ohms	Solder	500
Radiall USA, Inc. R128474201W	Panel Mount Through Hole	Snap-On	BMA	1	500 V	Brass	125 °C	-65 ░C	Extended Insulation	Solder	Silver	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Flange		22 GHz	Stainless Steel	Gold	50 Ohms	Solder	1000	IP54 - Dust Protected
Radiall USA, Inc. R128474211W	Panel Mount Through Hole	Snap-On	BMA	1	500 V	Brass	125 °C	-65 ░C	Extended Insulation	Solder	Silver	Male Pin Receptacle	Polytetrafluoroethylene (PTFE)	Flange		22 GHz	Stainless Steel	Gold	50 Ohms	Solder	1000
Radiall USA, Inc. R128474857	Panel Mount Through Hole	Snap-On	BMA	1	350 V	Brass	165 °C	-65 ░C	Extended Insulation	Solder	Silver	Male Pin Receptacle	Polytetrafluoroethylene (PTFE)	Flange	White Bronze	18 GHz	Brass	Gold	50 Ohms	Solder	500
Radiall USA, Inc. R128474847W	Panel Mount Through Hole	Snap-On	BMA	1	500 V	Brass	125 °C	-65 ░C	Extended Insulation	Solder	Silver	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Flange	White Bronze	18 GHz	Brass	Gold	50 Ohms	Solder	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BMA Connector Receptacle, Male Pin 50 Ohms Panel Mount, Through Hole Solder
