88179-5
ActiveTE Connectivity AMP Connectors
CONN FFC RCPT HSG 20POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
88179-5
ActiveTE Connectivity AMP Connectors
CONN FFC RCPT HSG 20POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 88179-5 | 88179 Series |
|---|---|---|
| Connector Type | Housing for Female Contacts | Housing for Female Contacts |
| Current Rating (Amps) | 1.5 A | 1.5 A |
| Features | Positions Stamped | Positions Stamped |
| FFC, FCB Thickness | 0.015 mm | 0.015 mm |
| Flat Flex Type | FFC, Discrete Wire | FFC, Discrete Wire |
| Housing Color | Black | Black |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled |
| Insulation Diameter [Max] [diameter] | 0.069 " | 0.069 " |
| Insulation Diameter [Max] [diameter] | 1.75 mm | 1.75 mm |
| Insulation Diameter [Min] [diameter] | 0.045 in | 0.045 in |
| Insulation Diameter [Min] [diameter] | 1.14 mm | 1.14 mm |
| Locking Feature | Detent Lock | Detent Lock |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 20 | 10 - 40 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 32 AWG | 32 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
88179 Series
CONN FFC RCPT HSG 12POS 2.54MM
| Part | Voltage Rating | Locking Feature | Housing Color | Note | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Current Rating (Amps) | Features | Housing Material | Flat Flex Type | Pitch [x] | Pitch [x] | Wire Gauge [Max] | Wire Gauge [Min] | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | FFC, FCB Thickness | Connector Type | Material Flammability Rating | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-88179-4 | 300 VDC | Detent Lock | Black | Contacts Not Included | 0.069 " | 1.75 mm | 0.045 in | 1.14 mm | 1.5 A | Positions Stamped | Polyamide (PA), Nylon, Glass Filled | FFC, Discrete Wire | 2.54 mm | 0.1 in | 32 AWG | 22 AWG | 12 | -65 ░C | 105 ░C | 0.015 mm | Housing for Female Contacts | UL94 V-0 | 2 |
TE Connectivity AMP Connectors 88179-6 | 300 VDC | Detent Lock | Black | Contacts Not Included | 0.069 " | 1.75 mm | 0.045 in | 1.14 mm | 1.5 A | Positions Stamped | Polyamide (PA), Nylon, Glass Filled | FFC, Discrete Wire | 2.54 mm | 0.1 in | 32 AWG | 22 AWG | 38 | -65 ░C | 105 ░C | 0.015 mm | Housing for Female Contacts | UL94 V-0 | 2 |
TE Connectivity AMP Connectors 88179-5 | 300 VDC | Detent Lock | Black | Contacts Not Included | 0.069 " | 1.75 mm | 0.045 in | 1.14 mm | 1.5 A | Positions Stamped | Polyamide (PA), Nylon, Glass Filled | FFC, Discrete Wire | 2.54 mm | 0.1 in | 32 AWG | 22 AWG | 20 | -65 ░C | 105 ░C | 0.015 mm | Housing for Female Contacts | UL94 V-0 | 2 |
TE Connectivity AMP Connectors 1-88179-4 | 300 VDC | Detent Lock | Black | Contacts Not Included | 0.069 " | 1.75 mm | 0.045 in | 1.14 mm | 1.5 A | Positions Stamped | Polyamide (PA), Nylon, Glass Filled | FFC, Discrete Wire | 2.54 mm | 0.1 in | 32 AWG | 22 AWG | 24 | -65 ░C | 105 ░C | 0.015 mm | Housing for Female Contacts | UL94 V-0 | 2 |
TE Connectivity AMP Connectors 2-88179-2 | 300 VDC | Detent Lock | Black | Contacts Not Included | 0.069 " | 1.75 mm | 0.045 in | 1.14 mm | 1.5 A | Positions Stamped | Polyamide (PA), Nylon, Glass Filled | FFC, Discrete Wire | 2.54 mm | 0.1 in | 32 AWG | 22 AWG | 40 | -65 ░C | 105 ░C | 0.015 mm | Housing for Female Contacts | UL94 V-0 | 2 |
TE Connectivity AMP Connectors 4-88179-2 | 300 VDC | Detent Lock | Black | Contacts Not Included | 0.069 " | 1.75 mm | 0.045 in | 1.14 mm | 1.5 A | Positions Stamped | Polyamide (PA), Nylon, Glass Filled | FFC, Discrete Wire | 2.54 mm | 0.1 in | 32 AWG | 22 AWG | 22 positions | -65 ░C | 105 ░C | 0.015 mm | Housing for Female Contacts | UL94 V-0 | 2 |
TE Connectivity AMP Connectors 3-88179-0 | 300 VDC | Detent Lock | Black | Contacts Not Included | 0.069 " | 1.75 mm | 0.045 in | 1.14 mm | 1.5 A | Positions Stamped | Polyamide (PA), Nylon, Glass Filled | FFC, Discrete Wire | 2.54 mm | 0.1 in | 32 AWG | 22 AWG | 10 | -65 ░C | 105 ░C | 0.015 mm | Housing for Female Contacts | UL94 V-0 | 2 |
TE Connectivity AMP Connectors 2-88179-1 | 300 VDC | Detent Lock | Black | Contacts Not Included | 0.069 " | 1.75 mm | 0.045 in | 1.14 mm | 1.5 A | Positions Stamped | Polyamide (PA), Nylon, Glass Filled | FFC, Discrete Wire | 2.54 mm | 0.1 in | 32 AWG | 22 AWG | 40 | -65 ░C | 105 ░C | 0.015 mm | Housing for Female Contacts | UL94 V-0 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.49 | |
| 10 | $ 2.06 | |||
| 25 | $ 1.92 | |||
| 50 | $ 1.81 | |||
| 100 | $ 1.71 | |||
| 250 | $ 1.59 | |||
| 500 | $ 1.50 | |||
| 1000 | $ 1.42 | |||
| 2500 | $ 1.32 | |||
Description
General part information
88179 Series

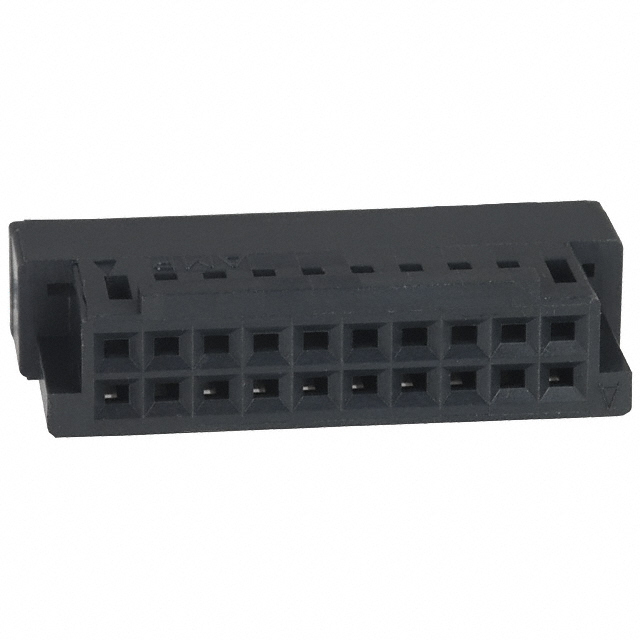

Housing FFC, Discrete Wire Housing for Female Contacts Connector Detent Lock 20Pos 0.100" (2.54mm)
