TR9KD3333T00NAIMR6B
ActiveGlobTek, Inc.

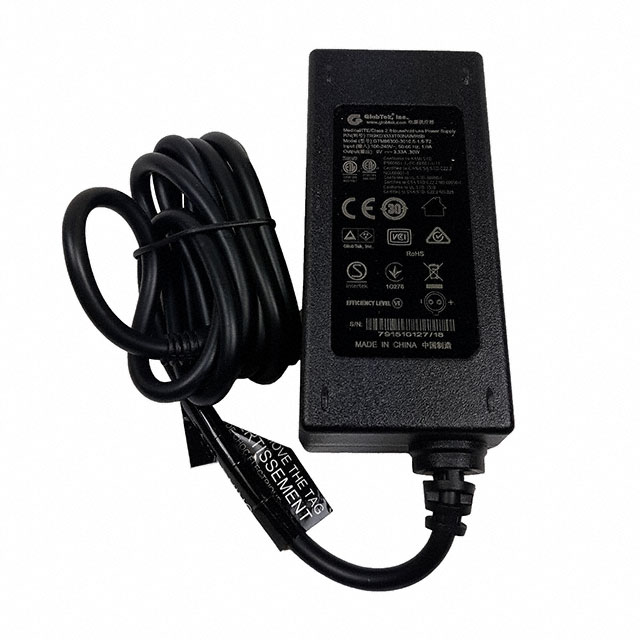

AC/DC DESKTOP ADAPTER 9V 30W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TR9KD3333T00NAIMR6B
ActiveGlobTek, Inc.
AC/DC DESKTOP ADAPTER 9V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TR9KD3333T00NAIMR6B |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | CB, S-Mark, VCCI, LPS, CCC, CE, PSE, UKRSepro, RCM, EAC, ETL |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 3.33 A |
| Efficiency | Level VI |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Barrel Plug Kit, 1.3mm x 3.5mm |
| Power (Watts) | 30 W |
| Region Utilized | International |
| Size / Dimension [x] | 105 mm |
| Size / Dimension [x] | 4.13 in |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [z] | 1.4 " |
| Size / Dimension [z] | 35.5 mm |
| Standard Number | 1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.54 | |
| 5 | $ 15.88 | |||
| 10 | $ 15.60 | |||
| 25 | $ 15.25 | |||
| 50 | $ 14.98 | |||
| 100 | $ 14.72 | |||
| 250 | $ 14.38 | |||
| 500 | $ 14.13 | |||
Description
General part information
TR9KD3333 Series
9V 30 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
