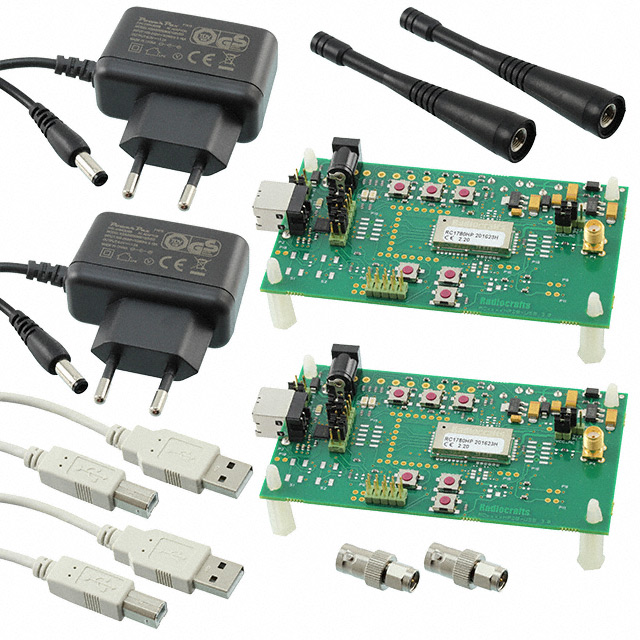

RC1701HP-MBUS4 Wireless M-Bus Transceiver 169MHz Evaluation Board

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	RC1701HP-MBUS4-DK	RC1701 Series

Antenna Type	-	Antenna Not Included, Castellation
Contents	Board(s)	Board(s)
Current - Receiving	-	31.7 mA
Current - Transmitting	-	703 mA
Current - Transmitting	-	403 mA
Data Rate	-	6.4 kbps
For Use With/Related Products	-	RC1701HP-WIZE
Frequency	169 MHz	169 MHz
Mounting Type	-	Surface Mount
Operating Temperature	-	-30 ░C
Operating Temperature	-	85 °C
Package / Case	-	42-SMD Module
Power - Output	-	27 dBm
Protocol	-	Wireless M-Bus
RF Family/Standard	-	General ISM < 1GHz
Sensitivity	-	-119 dBm
Serial Interfaces	-	UART
Supplied Contents	-	Board(s)
Type	Transceiver	Transceiver
Utilized IC / Part	RC1701HP-MBUS4	RC1701HP-MSM, RC1701HP-MBUS4
Voltage - Supply	-	2.8 V
Voltage - Supply	-	3.6 V

DEVELOPMENT KIT FOR RC1701HP-MSM

Part	Utilized IC / Part	Frequency	Type	Contents	Antenna Type	Power - Output	Operating Temperature [Min]	Operating Temperature [Max]	RF Family/Standard	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Receiving	Serial Interfaces	Package / Case	Sensitivity	Protocol	Current - Transmitting [Max]	Current - Transmitting [Min]	Mounting Type	For Use With/Related Products	Supplied Contents
Radiocrafts AS RC1701HP-MSM-DK	RC1701HP-MSM	169 MHz	Transceiver	Board(s)
Radiocrafts AS RC1701HP-MBUS4-DK	RC1701HP-MBUS4	169 MHz	Transceiver	Board(s)
Radiocrafts AS RC1701HP-WIZE		169 MHz			Antenna Not Included, Castellation	27 dBm	-30 ░C	85 °C	General ISM < 1GHz	6.4 kbps	2.8 V	3.6 V	31.7 mA	UART	42-SMD Module	-119 dBm	Wireless M-Bus	703 mA	403 mA	Surface Mount
Radiocrafts AS RC1701HP-WIZE-DK		169 MHz	Transceiver																		RC1701HP-WIZE	Board(s)
