857-011 Series

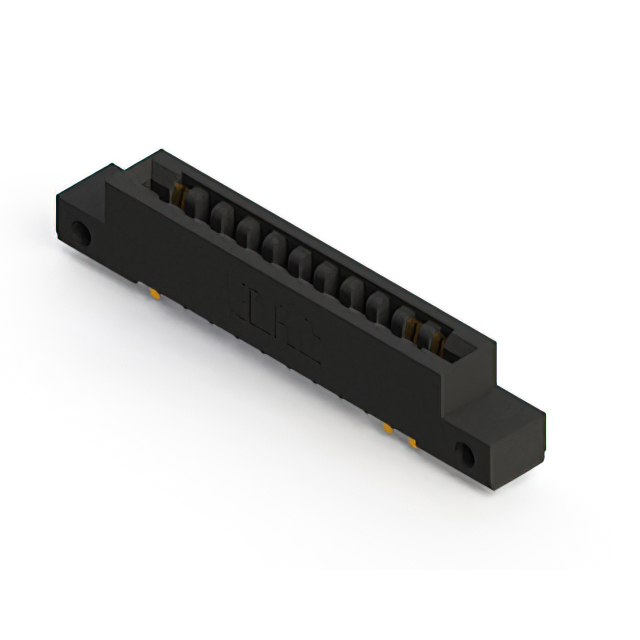

11 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	857-011-558-112

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature Diameter	0.128 in
Gender	Female
Material - Insulation	PPS, Polyphenylene Sulfide
Mounting Type	Through Hole, Right Angle
Number of Positions	11
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Single
Termination	Solder
Termination Rows	1 rows

857-011 Series

...

Part	Contact Material	Read Out	Number of Positions	Termination	Color	Flange Feature Diameter	Flange Feature	Contact Finish Thickness	Pitch	Mounting Type	Card Thickness (Min)	Card Thickness (Max)	Contact Finish	Contact Type	Card Type	Gender	Operating Temperature (Max)	Operating Temperature (Min)	Number of Rows	Termination Rows	Material - Insulation
EDAC Inc. 857-011-545-103	Copper Alloy	Single	11	Wire Wrap	Black	0.116 in	Floating Bobbin Flush Mount	10 Ąin	0.156 in	Through Hole	0.054 in	0.07 in	Gold	Semi Bellows	Non Specified Single Edge	Female	125 °C	-40 °C	1	1 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-011-558-102	Copper Alloy	Single	11	Solder	Black	0.128 in	Flush Mount Top Opening Unthreaded	10 Ąin	0.156 in	Right Angle Through Hole	0.054 in	0.07 in	Gold	Semi Bellows	Non Specified Single Edge	Female	125 °C	-40 °C	1	1 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-011-558-112	Copper Alloy	Single	11	Solder	Black	0.128 in	Side Mount Opening Unthreaded	10 Ąin	0.156 in	Right Angle Through Hole	0.054 in	0.07 in	Gold	Semi Bellows	Non Specified Single Edge	Female	125 °C	-40 °C	1	1 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-011-447-108	Copper Alloy	Single	11	Wire Wrap	Black		4-40 Flush Mount Threaded Insert Top Opening		0.156 in	Through Hole	0.054 in	0.07 in	Tin	Semi Bellows	Non Specified Single Edge	Female	125 °C	-40 °C	1	1 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-011-559-103	Copper Alloy	Single	11	Solder	Black	0.116 in	Floating Bobbin Flush Mount	10 Ąin	0.156 in	Right Angle Through Hole	0.054 in	0.07 in	Gold	Semi Bellows	Non Specified Single Edge	Female	125 °C	-40 °C	1	1 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-011-553-102	Copper Alloy	Dual	11 22	Solder	Black	0.128 in	Flush Mount Top Opening Unthreaded	10 Ąin	0.156 in	Right Angle Through Hole	0.054 in	0.07 in	Gold	Semi Bellows	Dual Edge Non Specified	Female	125 °C	-40 °C	2	1 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-011-554-103	Copper Alloy	Dual	11 22	Solder	Black	0.116 in	Floating Bobbin Flush Mount	10 Ąin	0.156 in	Right Angle Through Hole	0.054 in	0.07 in	Gold	Semi Bellows	Dual Edge Non Specified	Female	125 °C	-40 °C	2	1 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-011-559-112	Copper Alloy	Single	11	Solder	Black	0.128 in	Side Mount Opening Unthreaded	10 Ąin	0.156 in	Right Angle Through Hole	0.054 in	0.07 in	Gold	Semi Bellows	Non Specified Single Edge	Female	125 °C	-40 °C	1	1 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-011-559-107	Copper Alloy	Single	11	Solder	Black		Flush Mount M3 Threaded Insert Top Opening	10 Ąin	0.156 in	Right Angle Through Hole	0.054 in	0.07 in	Gold	Semi Bellows	Non Specified Single Edge	Female	125 °C	-40 °C	1	1 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-011-401-107	Copper Alloy	Dual	11 22	Solder Eyelet(s)	Black		Flush Mount M3 Threaded Insert Top Opening		0.156 in	Through Hole	0.054 in	0.07 in	Tin	Semi Bellows	Dual Edge Non Specified	Female	125 °C	-40 °C	2	1 rows	Polyphenylene Sulfide PPS
