PES.0M.305.XLCT

Active

LEMO

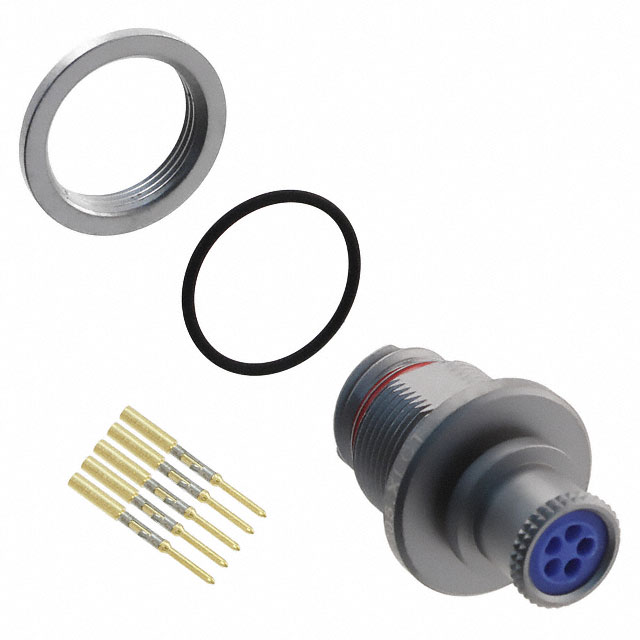

CONN RCPT MALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT MALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PES.0M.305.XLCT	PES.0M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening [diameter]	8 mm	8 mm
Cable Opening [diameter]	0.315 in	0.315 in
Color	Gray	Gray
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	6.5 A	6.5 - 8 A
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	S	S
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	305	303 - 305
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN RCPT MALE 5POS GOLD CRIMP

Part	Orientation	Contact Material	Mounting Feature	Shell Size - Insert	Insert Material	Shielding	Applications	Cable Opening [diameter]	Cable Opening [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Termination	Current Rating (Amps)	Shell Finish	Connector Type	Contact Finish - Mating	Ingress Protection	Primary Material	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
LEMO PES.0M.305.XLCT	S	Brass	Bulkhead - Front Side Nut	305	Polyetheretherketone (PEEK)	Shielded	Aerospace, Automotive, Aviation, Military	8 mm	0.315 in	-55 °C	200 °C	Gray	Crimp	6.5 A	Nickel	Male Pins, Receptacle	Gold	IP68 - Dust Tight, Waterproof	Metal	Aluminum Alloy	1 µm	39.4 µin
LEMO PES.0M.303.XLCT	S	Brass	Bulkhead - Front Side Nut	303	Polyetheretherketone (PEEK)	Shielded	Aerospace, Automotive, Aviation, Military	8 mm	0.315 in	-55 °C	200 °C	Gray	Crimp	8 A	Nickel	Male Pins, Receptacle	Gold	IP68 - Dust Tight, Waterproof	Metal	Aluminum Alloy	1 µm	39.4 µin
