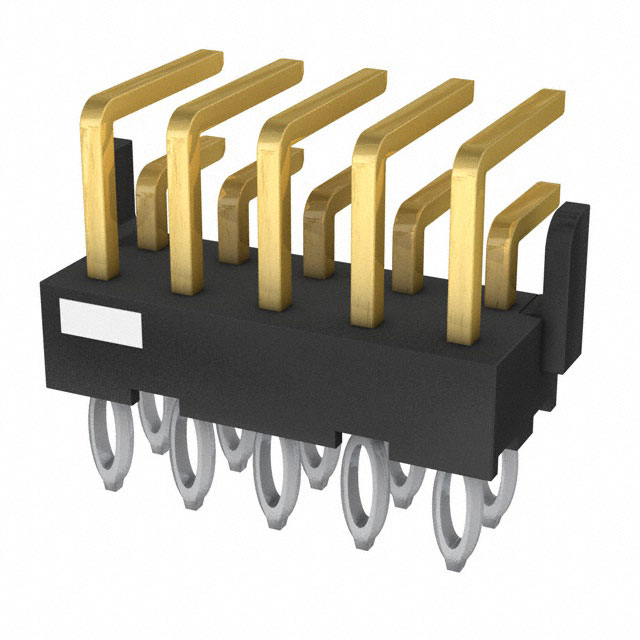

10118901-001LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 10POS 2.54MM

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER R/A 10POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	10118901-001LF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.11 in
Contact Length - Mating	2.79 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.05 mm
Insulation Height	0.12 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 2 Wall
Termination	Solder, Press-Fit

Part	Fastening Type	Connector Type	Insulation Material	Insulation Height	Insulation Height	Number of Rows	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Termination	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Finish - Post	Contact Finish - Mating	Contact Type	Contact Material
Amphenol ICC (FCI) 10118901-001LF	Push-Pull	Header	Thermoplastic	3.05 mm	0.12 in	2	UL94 V-0	0.11 in	2.79 mm	All	3.18 mm	0.125 in	Black	Press-Fit Solder	Square	0.1 in	2.54 mm	10	2.54 mm	0.1 in	Shrouded - 2 Wall	1.27 µm	50 µin	Through Hole Right Angle	Tin	Gold	Male Pin	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	36500	$ 0.25

General part information

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
