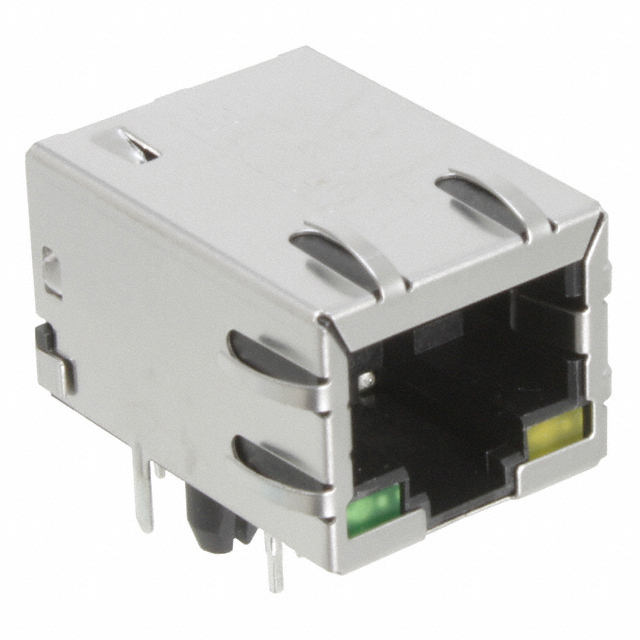

RB1-125BAG1A

Active

WIZnet

CONN JACK 1PORT 100 BASE-T PCB

Search across all available documentation for this part.

Active

WIZnet

CONN JACK 1PORT 100 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

CONN JACK 1PORT 100 BASE-T PCB

Part	Number of Ports	Connector Type	Contact Finish	Height Above Board	Height Above Board	Mounting Type	Housing Material	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Tab Direction	Number of Rows	LED Color	Shield Material	Contact Finish Thickness	Orientation	Applications	Termination
WIZnet RB1-125BAG1A	1	RJ45	Gold	0.525 in	13.33 mm	Through Hole	Thermoplastic	Shielded, EMI Finger	70 °C	0 °C	Phosphor Bronze	Down	1	Green, Yellow	Stainless Steel	Flash	90 °	10/100 Base-T, AutoMDIX	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
