2961037

Active

Phoenix Contact

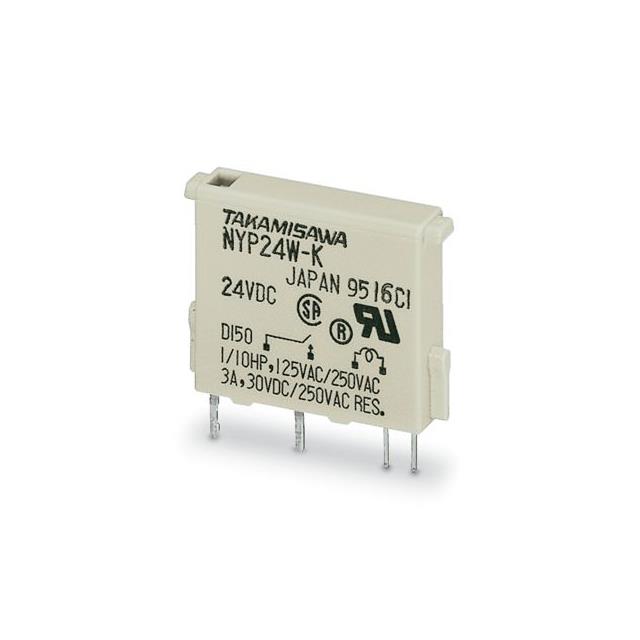

RELAY GEN PURPOSE SPST 3A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 3A 24V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPST 3A 24V

Part	Operate Time	Coil Resistance	Coil Current	Release Time	Mounting Type	Relay Type	Contact Material	Contact Rating (Current)	Load - Max Switching	Contact Form	Coil Voltage	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage	Approval Agency	Coil Type
Phoenix Contact 2961037	5 ms	4.8 kOhms	6.5 mA	2 ms	Through Hole	General Purpose	Silver Nickel (AgNi)	3 A	375 W, 750 VA	SPST-NO (1 Form A)	24 VDC	PC Pin	85 °C	-40 °C	125 VDC, 250 VAC	cULus, EAC, UR	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 21.03

General part information

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
