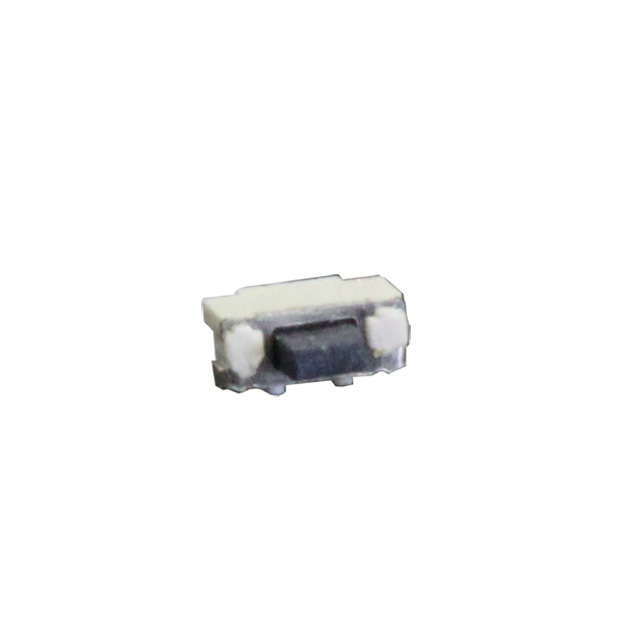

CS1211

Active

SWITCH TACTILE SPST-NO 0.05A 50V

Active

SWITCH TACTILE SPST-NO 0.05A 50V

Description

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle

Parameters and characteristics for this part

Part	Switch Travel	Actuator Material	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Orientation	Outline Length	Outline Width	Termination Style	Contact Rating (Current)	Mounting Type	Illumination	Actuator Type	Actuator Length (Right Angle)	Operating Force	Circuit	Switch Function
CIT Relay and Switch CS1206	0.23 mm	Nylon 4/6 Polyamide (PA46)	-40 °C	85 °C	Side Actuated	6.1 mm	4.5 mm	Gull Wing	0.05 A	Right Angle Surface Mount	Non-Illuminated	Rectangular Button	7.4 mm	200 gf	SPST-NO	Off-Mom
CIT Relay and Switch CS1211	0.25 mm	Liquid Crystal Polymer (LCP)	-40 °C	85 °C	Side Actuated	4.5 mm	1.88 mm	J Lead	0.05 A	Right Angle Surface Mount	Non-Illuminated	Rectangular Button		180 gf	SPST-NO	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
