TE6-1A-DC-1-GL
ActiveSwitch Components

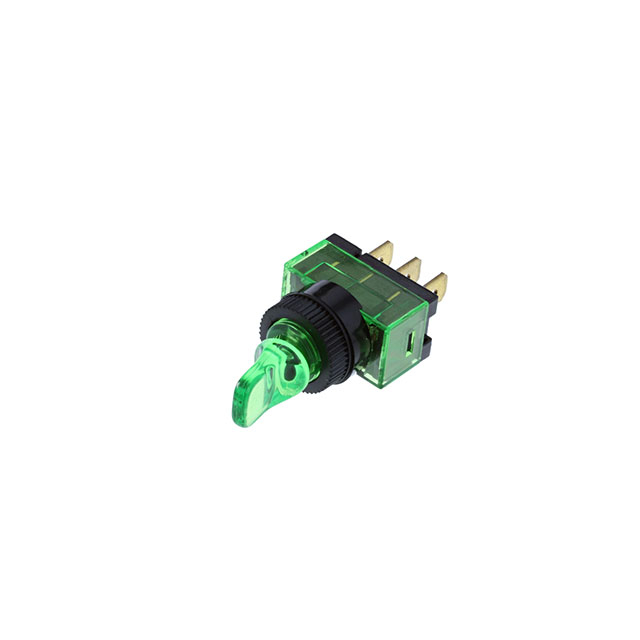

SWITCH TOGGLE SPST 20A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TE6-1A-DC-1-GL
ActiveSwitch Components
SWITCH TOGGLE SPST 20A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TE6-1A-DC-1-GL | TE6-1A Series |
|---|---|---|
| Actuator Length [x] | 17 mm | 17 mm |
| Actuator Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Actuator Type | Flatted | Flatted |
| Bushing Thread | M12 | M12 |
| Bushing Thread | 1 x 1 | 1 x 1 |
| Circuit | SPST | SPST |
| Current Rating (Amps) | 20 A | 20 A |
| Electrical Life | 6000 Cycles | 6000 Cycles |
| Illumination | Illuminated | Illuminated, Non-Illuminated |
| Illumination Type, Color | LED, Green | Red, LED, Green, Blue, Amber |
| Illumination Voltage (Nominal) | 12 VDC | 12 VDC |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 12.2 mm | 12.2 mm |
| Switch Function | On-Off | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 12 V | 12 V |
TE6-1A Series
SWITCH TOGGLE SPST 20A 12V
| Part | Termination Style | Electrical Life | Bushing Thread | Bushing Thread | Actuator Length [x] | Illumination Type, Color | Current Rating (Amps) | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Actuator Material | Illumination Voltage (Nominal) | Actuator Type | Illumination | Panel Cutout Dimensions [diameter] | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switch Components TE6-1A-DC-1-RL | Quick Connect - 0.250" (6.3mm) | 6000 Cycles | M12 | 1 x 1 | 17 mm | LED, Red | 20 A | On-Off | -25 °C | 85 °C | SPST | Polycarbonate (PC) | 12 VDC | Flatted | Illuminated | 12.2 mm | 12 V |
Switch Components TE6-1A-DC-1-GL | Quick Connect - 0.250" (6.3mm) | 6000 Cycles | M12 | 1 x 1 | 17 mm | Green, LED | 20 A | On-Off | -25 °C | 85 °C | SPST | Polycarbonate (PC) | 12 VDC | Flatted | Illuminated | 12.2 mm | 12 V |
Switch Components TE6-1A-DC-1-PB | Quick Connect - 0.250" (6.3mm) | 6000 Cycles | M12 | 1 x 1 | 17 mm | 20 A | On-Off | -25 °C | 85 °C | SPST | Polycarbonate (PC) | Flatted | Non-Illuminated | 12.2 mm | 12 V | ||
Switch Components TE6-1A-DC-1-UL | Quick Connect - 0.250" (6.3mm) | 6000 Cycles | M12 | 1 x 1 | 17 mm | Blue, LED | 20 A | On-Off | -25 °C | 85 °C | SPST | Polycarbonate (PC) | 12 VDC | Flatted | Illuminated | 12.2 mm | 12 V |
Switch Components TE6-1A-DC-1-AL | Quick Connect - 0.250" (6.3mm) | 6000 Cycles | M12 | 1 x 1 | 17 mm | Amber, LED | 20 A | On-Off | -25 °C | 85 °C | SPST | Polycarbonate (PC) | 12 VDC | Flatted | Illuminated | 12.2 mm | 12 V |
