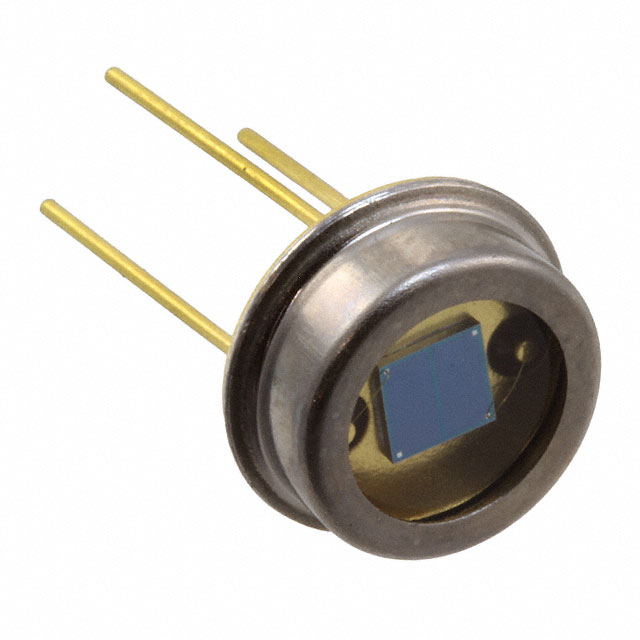

ODD-3W-2

Active

Opto Diode Corp

SENSOR PHOTODIODE 950NM TO5

Search across all available documentation for this part.

Active

Opto Diode Corp

SENSOR PHOTODIODE 950NM TO5

Technical Specifications

Parameters and characteristics for this part

SENSOR PHOTODIODE 950NM TO5

Part	Response Time	Color - Enhanced	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Active Area	Wavelength	Current - Dark (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Spectral Range [Min] [custom]	Spectral Range [Max] [custom]	Responsivity @ nm
Opto Diode Corp ODD-3W-2	190 ns	Red	Through Hole	75 V	3 mm²	950 nm	900 pA	125 °C	-40 °C	250 nm	1100 nm	0.36 A/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 950nm 190ns
