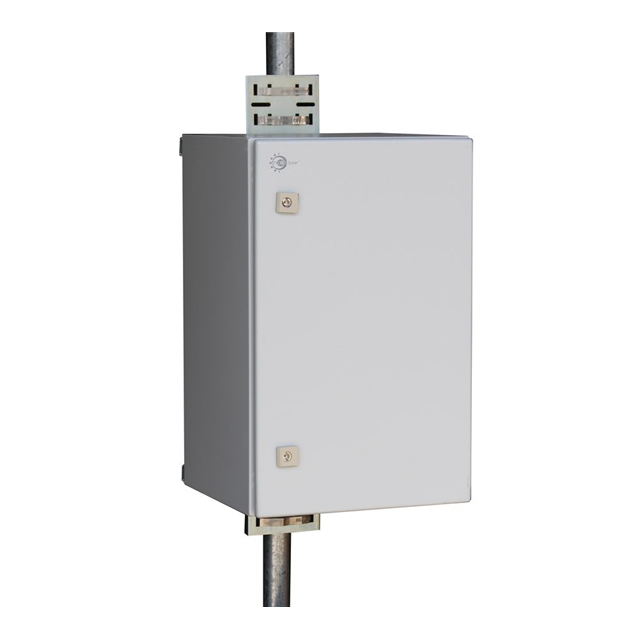

UPST12/24-200-600

Obsolete

Tycon Systems Inc.

UPSPRO 600W 2400VA, 12/24VDC 20A

Search across all available documentation for this part.

Obsolete

Tycon Systems Inc.

UPSPRO 600W 2400VA, 12/24VDC 20A

Technical Specifications

Parameters and characteristics for this part

Specification	UPST12/24-200-600

Applications	Industrial Control, General Purpose
Approval Agency	UL, CE
Form	Chassis Mount
Height [z]	14.016 in
Height [z]	356 mm
Power - Rated	600 W
Size / Dimension [x]	610 mm
Size / Dimension [x]	24.016 in
Size / Dimension [y]	15 in
Size / Dimension [y]	381 mm
Type	Standby (No Regulation)
Voltage - Input	120 VAC, 240 VAC
Voltage - Output	24 V, 12 V

UPSPRO 600W 2400VA, 12/24VDC 20A

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input	Voltage - Output	Type	Power - Rated	Height [z]	Height [z]	Approval Agency	Applications	Form
Tycon Systems Inc. UPST12/24-200-600	610 mm	24.016 in	15 in	381 mm	120 VAC, 240 VAC	12 V, 24 V	Standby (No Regulation)	600 W	14.016 in	356 mm	CE, UL	General Purpose, Industrial Control	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

UPSPRO 600W 2400VA, 12/24VDC 20A

Technical documentation and resources

No documents available
